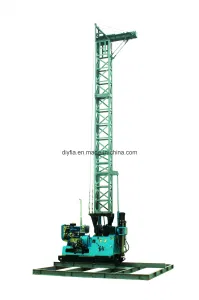

Mobile Drilling Rig (GY-300T)

Basic Info.Model NO.GY-300TTypeDrilling MachineApplication Ore Drilling Depth120~350Drilling Diameter350m 280m 220m 120mSpindle Speed (Forward)58 101 160 221 234 406 640Dimension2510x950x1820mmCertificationISO 9001: 2000DeliveryAbout 25days up to The Order QuantitySize of Tower4(L)X4(W)X9(H)MDrilling Angle Capacity of The Tower0-90Lifting Capacity9.6kn, 6m/TTrademarkDIYFIASpecification2510x950x1820mmOriginHunan, China(Mainland)Product Description Mobile Drilling Rig: GY-300TMain Features:1. Reasonable and compact in structure with the auto chassis technology; Large torque and widely used.2. Easy to operate and maintain with standardized auto parts, such as gear-box, clutch and shifting mechanism;3. Wide combination of torque and spindle speed;4. Perfect stability with water brake for deep-hole drilling;5. Long feed stroke for higher efficiency;6. Pin type hydraulic chucks in high reliability for drill stem;7. Designed from the ground up as a compact, powerful, portable, light weight diamond core drilling rig for the remote areas.GY-300 is a core drilling rig for middle and shallow hole. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.Applications:1. Wire line diamond core drilling for exploration of metallic ferrous or nonmetallic solid deposits;2. Exploration engineering in the field of geology, metallurgy, coal mine,;3. Shallow oil and gas drilling, mine's gallery ventilation and water discharge tunneling;4. Foundation & Construction drilling for high-rise building, highway, railway, bridge, port, harbor work, piling, dam and tunnel. Drilling Depth  350m   280m   220m   120m Drilling hole diameter 93mm   150mm  200mm 300mm Swivel Head 0 o 90 o Spindle Speed (r/min) Forward 49  86  136  187  234  406  640  885 Reverse 38      183 Maximum Torque          3000N*m Spindle Stroke          600mm Maximum Cylinder lifting force        60KN Maximum Cylinder driving force         45KN Spindle Through-hole   Hoist   Bobbin Diameter               200mm Rope Diameter          14mm Rope Capacity(7 floor)          45m Lifting Capacity(single pipe)          30KN Bobbin line speed (the third layer)   0.48  0.84  1.33  1.84 m/s Mobile Oil Cylinder Stroke          460mm Distance of Step Aside The Hole          260mm Oil Pump(Wheel oil pump) Type CBS-E528/F310-TLZ Displacement (25/10)mL/r Normal Rated Speed 2500 r/min Normal Pressure (16/20)MPa Max Pressure (20/25)MPa Power   Diesel Electric motor  Type 395k2 Y180L-4 Rated Power 20KW 22KW Rated Speed 1500r/min 1470r/min Dimensions 2300*900*1750mm Weight(power not included) 1300kg Drilling Rig tower Size of tower 4(L)X4(W)X9(H)M Drilling angle capacity of the tower 0 o_ 90 o Lifting Capacity 9.6KN 6m/t
