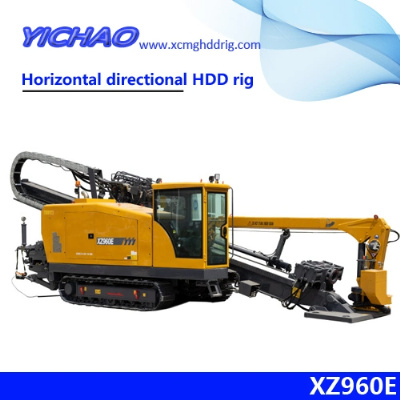

Xz960e Horizontal Directional Drilling Drill HDD Rig

XZ960E Horizontal Directional Drilling(HDD)Technical SpecificationXZ960E HDD Technical SpecificationModel: XUGONG XZ960E hdd rigManufacturer:XUGONG Foundation Construction Machinery Group Co.; Ltd.XZ960E HDD rig is integrated self-loaded designed with closed loops and hydraulic system, load sensing controlling system . The main components of hydraulic system, electrical system and transmission system are of top-grade domestic and international brand, and high reliability.I. Features Introduction 1.Closed circuits and hydraulic system with load sensing control.2.Gear rack thrust/pull design insures operation. Floating carriage can protect thescrew thread of the rods.3.High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.4.Sliding, rotating system multiple output, modular common rail fuel system and electronic control module, system energy saving, high efficiency of construction.5.Extensive views, singledouble handle operation mode,Wire guided walking system,it has comfortable operability ,highly active and safe.6.The semi-automatic drill pipeloader, can be installed to reduce the working loadand improve efficiency. II. Technology Introduction 1.ChassisXZ960E employs classical H-shape bridge structure, steel tracks, perfect site adaptability, and great stability. The imported brand "Eaton" walking reducer performance well. track length3125 mmtrack outer width2250 mmTrack width400 mmWheel Tread2545 mmGradeability30%Walking speed4km/hGrounding pressure63kPa2.Engine system SDEC turbocharging engine is very powerful and meets the China III. Engine modelSC9DF300G3Rated power221kWMax. torque of engine1300 N.m(1300-1600r/min) Rated rotating speed2200 r/min  Emission standardChina IIIFuel tank volume315L3.Hydraulic systemClosed circuit for rotation, open circuit for other functions. Advanced controlling tech such as load sensitivity, EHC (electrohydraulic control), imported components with great quality.Fuel tank volume350L4.Electrical systemElectrical startup button, fuse box, electric master switch.Specially designed simple electric wire is for HDD construction technology.Optimize instruments' position to be easily observed. Drive-by-wire, and continuously viable make operation easy and convenient. Monitoring alarm for engine rotary speed, water temperature, machine oil pressure, hydraulic oil level and temperature, oil return filtration, and carriage limit ensure operation safe.Electrical systemDC24V 5.Drilling frameVery strong drilling frame, working well with 6m length drilling rods. Swing cylinder working with angle cylinder to achieve accurate drilling angle.Drilling frame adjustable angle12.5~20° 6.CarriageThe machine thrust and pull through gear rack. Carriage's floating mandrel protects rods thread effectively. Variable displacement motor speed up thrusting and pulling. Thrusting and pulling reinforcement appliance can be chosen to increase pulling power and avoid construction risk.Max. thrusting /pulling force970kNMax. Thrusting /pulling speed50m/minMax. Rotation torque33000N·mMax. Rotation speed120r/minMax. Walking distance of carriage7100mm 7.ClampEquipped with powerful shackle vice8.Mud PumpHigh flow mud pump can provides strong power to have easier construction.Max. Mud pump flow600L/minMax. Mud pump pressure10Mpa 9.Console and CabAdjustable seat, and air conditioner improve comfort. Inner light, windshield, windscreen wiper, upturning window glass. Instruments and operation handle on board is very reachable and convenient.Cab width1050mmAir conditioner refrigeration4600WAir conditioner heating5000W when the engine cooling fluid is more than 85ºC  10. Mounted craneManual manipulation 2t crane.Max. Lifting weight2t 11.Pipe Loadersemi-automatic pipe loader:XZ960E HDD has the semi-automatic pipe loader, used rotating structure to achieve handling drill semi-automatization.12. Drilling rod and drilling rigs    XZ960E HDD Accessories Configuration: NameTypeFormSpecificationNoteDrill pipe(S135)Welded¢102mm×6mNC38Drilling RigsBack ReamerExtrusion¢450mmXUGONG¢600mm¢750mm¢900mm¢1050mm¢1200mmTunnel¢450mm¢600mm¢750mm¢900mm¢1050mm¢1200mm¢1300mm      AccessoriesPilot guide bit102 Guide plate102Puller102Puller102Transfer case80TConnect102Mud SystemMud Mixing System5m3 InstrumentGuide nstrumentNavigator EXUGONGDetector8100Radiodetection III.Main Technical Parameters  V.Main Part ConfigurationNameManufacturerEngineSDECRotating PumpLinde HydraulicsThrust/Pull PumpLiyuanAuxiliary PumpPermcoThrust/Pull ValveXUGONGCarriage Rotation MotorLiyuanCarriage Thrust/Pull MotorLiyuanCarriage Speed ReducerXUGONGCraneXUGONG  VI. Overall dimension and transportationOverall dimension as following:    VI. DocumentsXZ960E HDD includes following documents when delivery.Product CertificateInstruction ManualOperation and Maintenance Manual of EngineQuality Assurance Manual of EngineOperation and Maintenan
