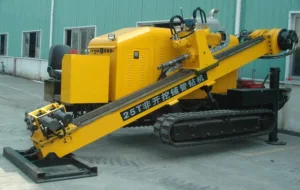

HDD Horizontal Directional Drill RHJ-25

Basic Info.Model NO.RHJ-25TLayoutHorizontalDiesel Engine Power125kwMax Spindle Torque8000nmMax Pullback Force250knMax Thrust Force250knSpindle Speed1-100rpmEntry Drill Angle8-20oMax Mud Flow Rate250L/MinMax Fluid Pressure8mpaOutline Dimension5500*2170*2100mmWeight8000kgOriginGuangdong, ChinaProduct Description 1. RHJ-25T Horizontal Directional Drilling Machine uses high-strength chassis, power stations and drilling rig integrated structure, easy to move.2. Cummins diesel engine driving force for selection of drilling rigs, power abundant, stable and reliable performance.3. Driving force for the first dual-motor drive, a smooth rotation, large torque.4. Shackle head has a self-floating bodies in order to reduce wear and tear on the drill pipe, easy to operate and reliable.5. Random hydraulic pipeline focused on the protective jacket to enhance the life of the pipeline.6. The point of view of the fuel tank to facilitate adjustment, angle adjustment flexibility.7. Used to pull back into the motor - the chain of institutions, pull up the same, to facilitate long-distance control.8. Dual-gripper screw unloading pipe, high efficiency.9. Hydraulic driven, centralized control, easy to operate and flexible Parameters      Model Unit RHJ-25T Diesel  engine  power kw 125 Max  Spindle  Torque Nm 8000 Max  Pullback  force kn 250 Max  thrust  force kn 250 Spindle  speed r. p. m 1-100 Entry  drill  angle º 8-20 Max  mud  flow  rate L/min 250 Max  fluid  pressure Mpa 8 Drill  rod(dia. x  length) mm Φ 73*3000 Dia.   Of  barrel  reamer mm Φ 160-680 Dia.   Of  winged  reamer mm Φ 320-720 Dia. of Fluted  channel  reamer mm Φ 300-700 Outline  dimension mm 5500*2170*2100 Weight kg 8000
