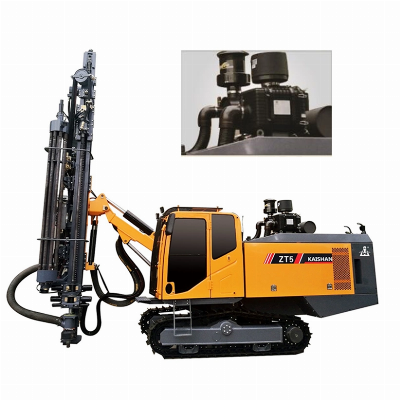

Integrated Crawler Mounted DTH Rock Blasting Drilling Rig Zt5

Integrated crawler mounted DTH rock blasting drilling rig ZT5Application                                                                                                                                                              The ZT5 integrated down the hole drill rig for open use is a new drilling device after years of development and production of down the hole drill rig to meet the needs of large open-pit mines.its travelling,propulsion,rotation and angle adjustments are based on hydraulic drive,thereby proving its powerfulness.The high air-pressure screw nose and high air-pressure DTH hammer contribute to efficient drilling.it is equipped with the drilling rod and the floating joint to protect the thread of drilling rod;one operator can dismantle the drilling rod.The air-conditioned cab provides comfortable space and the anti-jamming valve with auto matic control reduces the possibility of sticking.And what is more,the drill rig is characterized by excellent integrity,high automation,efficient drilling environment-friendliness,energy conservation,simple operation,flexibility and travelling safety,etc  CharacteristicIncrease the pitch and lift arm cylinders to meet their extreme position requirements. At the same time, the hydraulic system is upgraded to increase the system flow and increase the swing speed. Optimize the lift cylinder to improve its reliability.Multiple unit valve with a single layer combination, reastonable location,easy to operateSpecification                                                                                                                                                             ZT5 integrated drilling rigModelZT5Rock rigidityf=6-20Diameter of hole90-105mmDepth of economical drilling24mRotation speed0-120 r/minRotation torque1400 N·mLift power25 KNTilt angle of beam125°Method of propulsionRoller ChainWalk speed2.5-4 Km/hGradeability≤30°Ground clearance430mmWeight13000kgSize of drill machine8630x2100x2830Sliding carriage pitch angleBlow 135°,up50°, total 185°Sliding carriage swing angleLeft100°,right45°,total 145°Compensation Stroke1200 mmPowerWEICHAI 176 KWDrill pipeΦ64X3000mmAir Compressor10 m³/min,15 BarCompensation Length1800 mmCabwith driver's cab Packing& Delivery                                                                                                                                                Service                                                                                                                                                                In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
