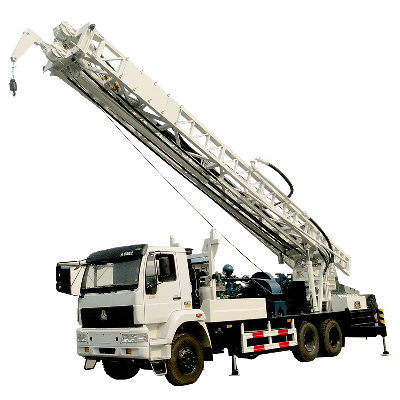

350m Truck Mounted Borehole Drill/Drilling Machine Rig (C350ZYII)

350m Truck Mounted Borehole Drilling Machine1. It is a kind of truck mounted and rotary drilling rig.2. The truck chassis adopts the 6X4 special crane chassis of brand SINOTRUK, the main transmit, transmission power, gearbox, sets of windlass, mud pump, sewage pump, mast are set up on the chassis.3. The power of drilling rig comes from the truck engine, the rig setups distribute implement and hydraulic system.4. We can set up a generator (15kw), so that it is convenient to illuminate or work at night.5. The adding pressure device is hydraulic, so it has a high efficiency when the rig drill on mud rock and weathering formation through using the adding pressure implement.6. The master driving of rig is mechanical, the four jacks and mast are hydraulic operated. Distribute box, sewage pump, master driving clutch system are air operated.7. The appearance of rig is pretty, it has a high efficiency because of having a larger torque of the turntable, it is mainly used for water well, construction, national defense building foundation, geological exploration, geothermic well and other foundation working, it is popular with domestic and foreign clients.  Drilling depth(M)80300Drilling diameter(mm)1500500Speed of turntable(r/min)21.2/36/63.2/100.6/155/20.2(reverse)Torque of turntable(KN. m)18/10.6/6/3.8/2.5/18.9(reverse)Single rope lifting capacity of mian windlass(KN)30The capacity of main windlass(KN)180Single rope lifting capacity of hydraulic windlass(KN)40The capacity of hydraulic windlass(KN)160The lifting capacity of hook(KN)180Bearing capacity of mast (KN)180The height of mast (mm)11500Bearing capacity (t)25PipeKelly bar(mm)108× 108× 7500Assistant pipe (mm)Ø 89× 10× 5500Hydraulic pumpModelCB-HP50/32ZPump delivery (ml/r)50/32Rated speed (r/min)2000Rated pressure(MPa)20BW850/2Aplunger pumpDiameter of cylinder (mm)150Stroke of piston (mm)180Theory of flow (L / min)600 850Rated pressure (Mpa)3 2Pounding times (min -1 )58 82Diameter of suction tube (mm)127Diameter of drain pipe (mm)64Input speed (r / min)470Input power (kw)40Overall dimensions (mm)2000*1030*1400Weight (t)1.5Truck chassisModelTAZ5191TZJDrive form6× 4EngineModelTBD226B-6II(Europe II emission standard)Rated power(KW)132Speed (r/min)2300Size (L*W*H)(mm)11110× 2490× 2500Electric generatorModelMFRated power (kw)15Rated voltage(v)400Rated current(A)27Speed (r/min)1500Frequency(Hz)50Protection levelIP21Insulation ClassHThe best working gear (or speed)5 th gear(1000-1400r/min)The highest speed(Km/h)75Weight (kg)19340Transport size(L*W*H)(mm)12160*2490*3440Working size(L*W*H)(mm)11110*2490*13110Packing and TransportPacking: Seaworthy Packing Delivery: about 30 days after your down payment. Company ProfileGlorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.ExhibitionCertificationsCustomer PhotosAfter-sale Warranty(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue. (2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account. (3)Timely after-sale assistance shall be provided all the time. FAQQ: Are you original manufacturer or trading company?A: We are an integrated corporation specialized in manufacturing and exporting. Q: Can you supply related drilling tools?A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well. Q: Which payment terms can you accept?A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. Q: How is your delivery time?A: This will depend on your purchasing quantity. Normally we can deliver within 30days.  Q: How can you ensure the quality?A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out. Contact UsJane Cheng  Sales Representative  Glorytek Industry ( Beijing ) Co., Ltd.  Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China.  Website:  glorytek.en.made-in-china.com   /  glorytek.en.made-in-china.com   /* March 10, 2023 17:59:20 */!function(){function s
