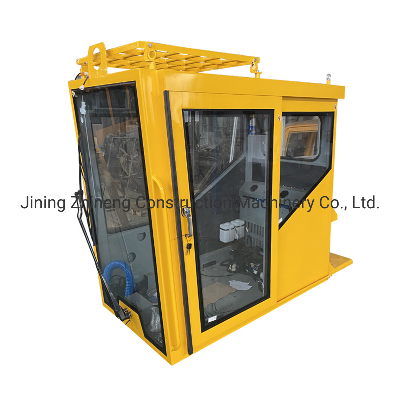

Crawler Hydraulic Rotary Drill/Drilling Rig Engineering Drilling Rig Cab  The reliability and stability of the engineering drilling rig cab should be given priority when designing and using it. The engineering drilling rig cab  adopts ergonomic design to ensure easy and quick operation, comfort and safety. The engineering drilling rig cab is the workplace where the driver controls the vehicle. It consists of a display system, an operating system and an accessory system. The display system includes displays, indicator lights and instruments; the operating system includes operating valve groups, control boxes, etc.The engineering drilling rig cab display system includes displays, instruments and indicator lights. The original position of the display is on the left side of the seat. The driver needs to rotate his head a lot to observe. Frequenthead rotation at a large angle can easily cause dizziness and other discomfort. And it is too close to the eyes of the operator, and long-term close observation of the luminous screen in a dark environment will greatly damage eyesight. Therefore, when designing, consider whether the location and distance of the display are appropriate. The instrument is located on the console. Considering the relationship between the best viewing zone and driving performance, the angle between the center of the instrument panel and the horizontal centerline of the sight should be around 30°, and the entire operating panel system should be controlled as far as possible. Within 120° of the driver's field of view.The operating system of the engineering drilling rig cab is composed of a joystick, a control valve group, etc., which cooperate to control the operation of the equipment. The design of the control panel determines the optimal layout range based on the measurement data of the human body size. There are many internal components and complicated pipeline layout in the engineering drilling rig cab, which makes the operation interface relatively cumbersome and also causes the engineering drilling rig cab to be crowded. When designing, the operating valve group and components should be rationally arranged. Combining with human operating habits can effectively reduce misoperation.In addition to the necessary display and control devices in the engineering drilling rig cab, it also includes accessories such as seats and workbenches. As a platform for installing and operating valve blocks and instrument panels, the workbench needs to be designed in accordance with the data of the operation platform in ergonomics, which can effectively reduce misoperation.There are dense pipelines in the engineering drilling rig cab, and people's psychological comfort and factors that reduce misoperation should also be taken into consideration. The pipelines are hidden under the cover toeffectively integrate the space.Because the driver uses a sitting position to work, the console also requires leg room. In order to meet the needs of most drivers, you can use the size of the human knee popliteal height and the thickness of the thigh when sitting, and consider that the driver wears winter clothing and The corrected size added to the shoe. When the machine is working, it is necessary to observe the road surface in real time. The design ofthe workbench should minimize the obstruction of the driver's line of sight. Therefore, the height of the workbench cannot be too high and the seat height is adjustable. Therefore, the console height is selected as 650 mm, the leg space height is 625 mm.When the driver is working in a sitting position, the height of the working surface should be able to make the human body's shoulders sag naturally and the forearm is close to the horizontal position. The height of the engineering drilling rig cab seat is designed to be adjustable, which can also meet the needs of different drivers. Body size reduces operating fatigue. When operating machinery, the driver must always pay attention to the road work conditions, the body should be slightly forward, the shoulder blades can hardly touch the backrest, so the seat generally only needs to design the lumbar support to reduce the pressure on the lumbar spine. When working, the driver often relaxes the muscles and reduces fatigue by sitting on either side of the seat or changing the angle of sitting on the seat. Therefore, when designing the seat, it is necessary to take into account the extra space and different backgrounds. The sensitivity is different. Based on the comfort of the human body, the interior of the engineering drilling rig cab is designed according to the size of the human body, and the color of the human body has different sensitivity angles to different colors. The exterior color of the engineering drilling rig cab is selected to make the cab conform to ergonomics and improve The driver's human body comfort during operation reduces labor fatigue and improves work efficiency.We provide the steering column assembly, insturm
