Anchoring Drilling Rig for Construction

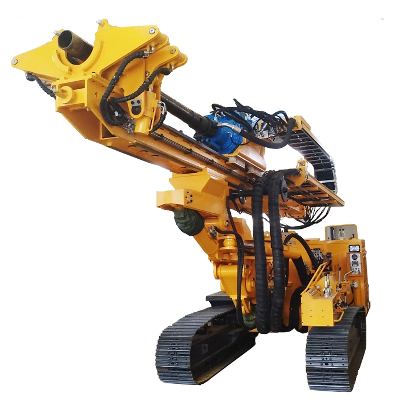

Product Description D-150 Anchor Drilling RigThe lately developed D-150 drill rig is electric powered lightweight anchor drill rig used for diverse drilling techniques foranchor drilling projects, such as auger drilling, single pipe drilling, dual pipe drilling and self-drill anchor drilling.Electric powered D-150 drill rig at drilling operation makes it more energy saving and environment friendly. With powerfulhydraulic hammer equipped on the top head of the drill rig, it is applicable to diverse difficult drilling strata with higherdrilling speed. For facilitate movement of the drill rig when there is inconvenient for connecting electric power, the smalldiesel engine is mounted on the drill rig, which is quite useful for locating itself to position.  Picture  Technical Parameter  ModelD-150Power typeElectric poweredMax. power output (KW)110Mode of operationRotary/PercussiveElectric system (V)24Fuel tank capacity (L)501st circuit operating pressure (Mpa)0-242nd circuit operating pressure (Mpa)0-243rd circuit operating pressure (Mpa)0-20Hydr. oil tank capacity (L)450Feed stroke (mm)3500Feed force (KN)35Retraction force (KN)65Feed rate (m/min)Low0-22High0-61Retraction rate (m/min)Low0-11High0-31Percussion Frequency (Times/min)0-1150Max. torque (N•m)12500Rotating (r/min)0-34     0-48 0-55     0-67  0-78     0-95 0-100   0-155Transport dimensions(L*W*H)(mm)6700*2000*2600Weight (Kg)9000Note: The positioning movement of D-150 drill rig can be powered either by diesel engine or electric motor.  ServicesDelivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out. After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.  Company ProfileGlorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.   Contact InformationSophia Han (Sales Representative)Tel: +86-10-52864265/52864786Fax: +86-10-52037270Mobile/WhasApp:+86-13426420230Website: glorytek.en.made-in-china.com   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
