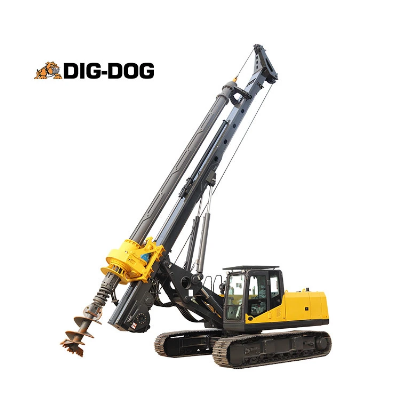

Construction Hydraulic Auger Rotary Drilling Rig with Crawler Chassis Undercarriage

DIG-DOG ROTARY DRILLING RIGDIG-DOG overall transport full-liquid voltage Rotary Drilling Rigs.The leading overall transportation full -liquid voltage rotor digging machine to achieve rapid conversion of transportation status and construction status;Adopt a high -intensity broader rotor roding rig dedicated chassis, flexible control, comfortable driving, ultra -low fuel consumption,The transformer institution adopts a dual -oil cylinder, the mast stability is better, and the perforated straight linearity is higher. The main and auxiliary roll assembly is installed on the mast.It is especially suitable for small pores, high soil is high.Detailed Photos Product Parameters      Drilling Rig UnitDR45DR60DR135 Engine   Model     YANMAR 4TNV98T Cummins QSF3.8 MITSUBISHl 4M50 Service power kW 56.5 86 118 Rated power rpm 2200 2000 2000 Power head   Maximum output torque KN.m 45 65 150 Drilling speed rpm 0-60 0-40 0-30 Maximum drilling diameter mm 1000 1000 1200 Maximum drilling depth m 15 21 50 Drill pipe diameter mm 273 299 377 Standard machine-lock type drill pipe     4×4.5m 4×6m 4×10m Standard friction drill pipe     4×4.5m 4×6m 5×10m Hydraulic system Working pressure Mpa 30 30 34 Working weight of the whole machine kg 13000 21000 43000 Overall dimensions Working state mm 4560×2300×8590 5550×2500×11200 7300×3900×16300 Transport state mm 7200×2300×3000 9500×2500×3470 12250×2900×3400 FAQAre you a manufacturer?DIG-DOG is a family brand of BONOVO group, mainly focusing on small earth moving machines and amphibious excavators. We started our factory in 2006, but our industry experience dates back to the 1980s.How to choose a drilling rig?Safety, reliability and ease of use are also important elements to consider and are directly linked to each other. A machine that's reliable and easy to operate, when used according to the manufacturer's recommendations, increases user safety.Which payment terms do you accept? We can work on T/T bank transfer and 100% irrevocable L/C, we also accept trade assurance orders paid by Alibaba, which is now safe and fast for both. Please contact our customer representatives directly for a specific term. What logistics way for product delivery? A: 1). 90% in shipment by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe, etc.2). For neighborhood countries of China, including Russia, Mongolia, Uzbekistan etc., we can ship by road or railway.3). For light parts in urgent need, we can deliver in international courier service, including DHL, TNT, UPS or FedEx. What are your warranty terms? We provide a 12-month or 2000 working hours structural warranty on all our products, except failure caused by improper installation, operation or maintenance, accident, damage, misuse or non Bonovo modification and normal wear.What is your lead time? We aim to provide customers with a fast lead time. We understand emergencies happen and priority production should be preferred in a faster turnaround. A stock order lead time is 3-5 working days, while custom orders within 1-3 weeks. Contact our sales so you can have an accurate lead time based on actual situations./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
