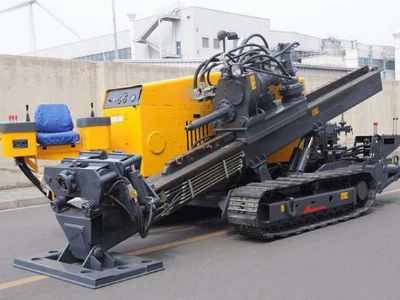

Chinese HDD Machine Construction Directional Drilling Rig Xz320

Chinese HDD Machine Construction Directional Drilling Rig XZ320  Product Description XZ320 used under the condition of non-excavating ground surface, laying and replacing various kinds of underground pipes and lines, gas supply, as well as electricity, telecommunication, heating, and petroleum supply.1,Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) full-automatic pipe loader, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing,mud throttling and other devices, can also be optioned more eco saving EU Stage 3A.2,Carriage and clamp using double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.3,High-speed sliding systems, piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.4,Optional full-automatic pipeloader, drilling box can accommodate 40 piece of drill pipes, ensure one time reached 120 meters, efficient automation construction, reduce construction costs and labor intensity.Product ParametersDescriptionUnitParameter valueEngineManufacturers Dongfeng CumminsChina IIIModel QSB5.9-C210Rated PowerkW /(r/min)154 / 2200China IIModel 6BTAA5.9-C205Rated PowerkW /(r/min)153/ 2200China IIIModel QSB6.7-C220EU Stage IIIARated PowerkW /(r/min)164/2200Thrust-PullType Pinion and rack driveMax thrust-pull forcekN370/370Max thrust-pull speedm/min32RotationType four motorTorqueN·m13200Max spindle speedr/min140Loader Crance//Max inclination angle°20PipeDiameter × Lengthmm×mmΦ73/83×3000Mud pumpMax Flow rateL/min400Max pressureMPa8Weightkg10500Company Information:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
