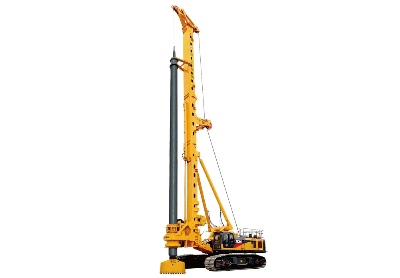

Xr400d Construction Hydraulic Rotary Piling Drilling Rig

Product Description Hydraulic Rotary Drilling Rig XR400D   Product Information:Adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearingto provide extraordinary stability and transport convenience.Cummins electric control turbo-supercharged engine to provide strong power and conformitywith Euro III emission standard. With the hydraulic pressure system adopted threshold powercontrol and negative flow control, the system acquired high efficiency and higher energyconservation.Using single rope winding, effectively solve the steel wire rope wear problem, improve the lifeof wire rope; And drill deep detection device is setted in main winding,single rope to make deepinspection more accurate.Several drilling rod configurations with different specification areavailable for efficient construction on different layers.The whole machine design meet the requirements of the CE directive, safety guarantee,construction safer. The optional centralized lubrication system, maintenance more convenient. The detachable unit head drive key can provide easy maintenance and replacement.Technical Data:XR400D rotary piling rigEngineEngine BrandCUMMINSEngine TypeQSX15-C500Rated PowerkW373kWRotary DriveMax output torquekN . m400Rotary speedr/min7~23Max Drilling Diametermm3000Max Drilling Depthm108Crowd CylinderMax pull-down piston pushkN300Max pull-down piston pullkN400Max pull-down piston strokem6Crowd WinchMax pull-down piston pushkN300Max pull-down piston pullkN400Max pull-down piston strokem16Main WinchMax Pulling forcekN420Max line speedm/min60Auxiliary WinchMax Pulling forcekN100Max line speedm/min65Mast RakeSide0± 50Forwards± 50Backwards± 150UndercarrigeMax traveling speedkm/h1.3Max grade ability%35Min Clearancemm450Track shoe widthmm900Distance between tracksmm3700 ~ 5100Hydraulic SystemWorking pressureMpa32Overall Drilling Weighttons132DimensionWorking conditionmm10530 x 5100 x 28572Transportation condition mm18025 x 3700 x 3500Details Photo:Transportation:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
