Rotary Pile Drilling Rigs Foundation Engineering Machinery Hydraulic Rotary Drilling Rig

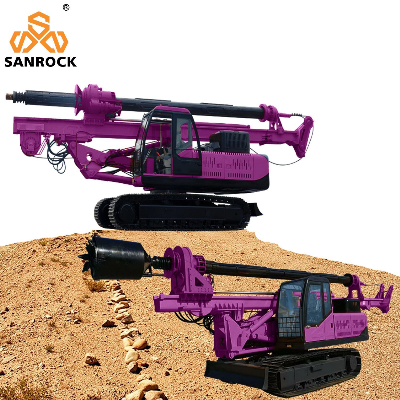

SRP515B Rotary Drilling RigThe mast of this rig is short and small. It is speciallu designed for the construction of bridges, tunnels, railways, high-voltage lines and other special working conditions with limited space height.Product DescriptionProduce Name: Rotary Drilling RigSRP515B Main Technical ParametersEngineModel6105ZIY4/YCRated powerKW110Rotary DriveMax.output torqueKN.m100Rotary speedr/min17-35Max.Drilling Diametermm1200Max.Drilling Depthm15Main WinchRated TensionKN80Max.single-rope speedm/min60Auxiliary WinchRated TensionKN30Max.single-rope speedm/min60Lateral/forward/backward inclination of mast°±5/5/15Pull-Down CylinderMax.pull-down piston pushKN80Max.pull-down piston pullKN100Maximum strokemm3000ChassisMax.traveling speedkm/h2.5Min.ground claerancemm400Crawler board widthmm450System Working Pressure   MPa32Overall Drilling Weight   t21DimensionWorking Conditionmm6550*2300*8500Transportation Conditionmm7600*2300*34Feature:The power head is reasonable in design, reliable in lubrication, strong in power, cost-saving, not easy to damage, and easy to maintain.Five drill pipes can be selected and the maximun drilling depth can be up to 15 meters.Company Profile Certifications Packaging & ShippingFAQ1.what can you buy from us?DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,underground jumbo drill rig ,screw air compressor,DTH hammer,drill rod,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.2.How can I make payment?A:You can pay by credit card, TT, Western Union, LC etc.3. How is the shipment? How long dose it take?A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.4.How is your quality control?A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
