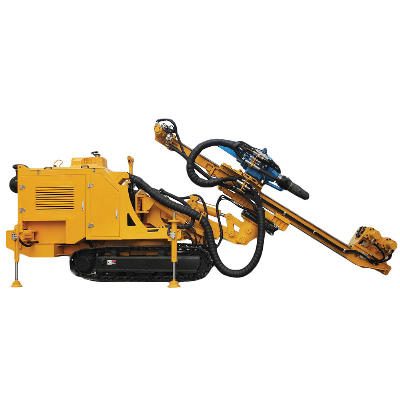

Z-1250 Hydraulic Impact Anchor Drilling Machine Rig Supplier

Z-1250 Anchor Drilling RigProduct DescriptionTechnical Parameters   ModelZ-1250Power parameter   EngineCUMMINS QSB4.5-C160 IIIMax. power output (KW)123Rated output at 220 rpm (KW)119Electric system (V)24Fuel tank capacity (L)2001st circuit operating pressure (Mpa)0-222nd circuit operating pressure (Mpa)0-223rd circuit operating pressure (Mpa)0-20Hydr. oil tank capacity (L)400Feed stroke (mm)2500Feed force (KN)50Retraction force (KN)50Feed rate (m/min)0-10Retraction rate (m/min)0-10Fast feed rate (m/min)0-50Fast retraction rate (m/min)0-50Rotary spray lifting speed (m/min)0-2.8 (Adjustable)Mode of operationRotary/PercussivePercussion Frequency (Times/min)0-1150Max. torque at high speed (1st gear / 2nd gear)(N•m)6000/4250Max. torque at low speed (1st gear / 2nd gear)(N•m)12000/8500High rotating speed (r/min)0-92       0-144/ 0-64    0-100Low rotating speed (r/min)(Adjustable)0-46 0-72/ 0-32 0-50Transport dimensions(L*W*H)(mm)5900 * 1500 * 2850Weight (Kg)8500Z-1250 Anchor Drilling RigThe Z-1250 drill rig is designed for working in narrow spaces, such as tunnel, culver and foundation ditch. With its rotating-percussion rotary head, it is suitable for drilling in stratum formations of sticky clay, sandstone as well as partially decomposed rock stratum. With down-the-hole hammer, it can drill in hard rock formation efficiently. The emission standard of its power engine is TIERIII.                                       Control Box                                                              Top-drive Power Head                                                    Top-drive Power Head                                          Holder                                                                         Operation Panel                                                          Operation PanelOmnidirectional anchoring and pilingWith 360 degree horizontal and vertical rotating tables, Z-1250 Anchor Drilling Rig can be used efficiently for drilling holes to front facet, flank facet as well as ceiling of tunnels. In the operation panel, there is a special designed operation handle for shifting to grout jetting drilling technique, with suitable rotating and pull back speed for high efficiency grout jetting.Packing and TransportPacking: Seaworthy PackingDelivery: about 30 days after your down payment.   Application  Related ProductsCompany ProfileGlorytek Industry (Beijing)Co.,Ltd.,located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.   Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.     Latest Exhibition  Certifications   Customer Photos  After-sale Warranty(1) Within the period of the first year after delivery, the main parts of Drilling Rig are guaranteed to be supplied free of charge once the problem caused by the quality issue.    (2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.    (3)Timely after-sale assistance shall be provided all the time.FAQQ: Are you original manufacturer or trading company?A: We are an integrated corporation specialized in manufacturing and exporting.Q: Can you supply related drilling tools?A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit.Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.Q: Which payment terms can you accept?A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.Q: How is your delivery time?A: This will depend on your purchasing quantity. Normally we can deliver within 30days.Q: How can you ensure the quality?A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.Contact UsJane Cheng Sales Representative Glorytek Industry ( Beijing ) Co., Ltd. Address:No.B-2507, DongWeiCheng, GuanZhuang,Chao Yang District, Beijing, China. Tel: +86-10-52864265/52864786 Fax: +86-10-52037270 Mobile:+86-13426420230 Website:  glorytek.en.made-in-china.com    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
