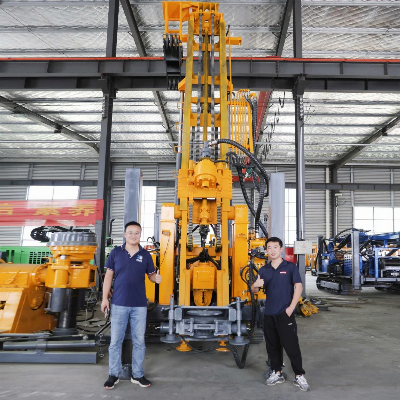

shallow rig drilling well 350m Top Drive machine soil testing drilling rigMechanical top drive YDL-350The mechanical top drive series drilling rig is a kind of water well drilling equipment independently developed by the company, which integrates the functions of water drilling and air drilling.1. The power head adopts mechanical transmission.2. The drilling rig adopts 525 manual gearbox for vehicles.3. The single feeding stroke of the power head is 3500mm.4. Hydraulic automatic opening and closing mechanism of the power head.Product ParametersYDL-350 mechanical top drive water and air dual purpose drilling rigDrilling capacityDrilling depth for water well350m(152mm~203mm)Rope Coring 75mm ApertureWireline coring N size600mBorehole (Drill bit) dia.Ø75~Ø350mmDrilling angle90°Drive headLifting capacity120kNThrusting capacity85kNRotary speed RPMForward:27,51,93,129,156,193,247,437,737,901r/minreverse:48,219 r/minMax. Torque10500N.mPower UnitEngine ModelYN33Rated power/speed58kW/2400r/minMechanical winch capacity5.5TonDrill pipeDrill pipe dia.Ø50/Ø60/Ø76/Ø89mm NQ/ HQ /PQDrill pipe length3000mmMud pumpBW160/ BW200/ BW250Air compressorAir consumption16~35m3/minAir pressure10.5~24.6barCrawler chassisWalking speed0~2 km/hClimbing angleMax. 25°~30°DimensionTransport6300*2000*2600mmWorking3800*2400*7600mmWeight with steel crawler6500kg Note: The above parameters are subject to change without further notice, please refer to the actual product.The mechanical top drive series drilling rig is a kind of water well drilling equipment integrating the functions of water drilling and air drilling. The drilling rig adopts the 525 gearbox for vehicles, which is sensitive and convenient to switch gears. The transmission efficiency is double that of hydraulic transmission, and the power consumption is reduced by 35%. %, more efficient and energy-saving. It solves the difficulty of drilling with the air DTH hammer in the soil layer and the low construction efficiency of the rotary drilling rig in the hard rock layer, gravel and pebble layer.The main features of the drilling rig:1. The speed of the drilling rig can reach the speed range of 27-901r/min, and the maximum output torque is 10500N.m.2. The drilling rig adopts a long-stroke double-speed mechanism and a mechanical power head. The stroke of the power head is 3500MM, which is used to improve drilling efficiency and reduce the occurrence of drill blocking and burning accidents.3. The drilling rig adopts dual oil pumps for oil supply, single pump is used when drilling, and double pumps are used for confluence when lifting and lowering the drill; the power loss is small and the auxiliary time is short.4. The crawler chassis is adopted, and the stroke of the outrigger oil cylinder is 1.5m, which can be automatically loaded on the vehicle, which is convenient for relocation and transportation.5. The drilling rig is in machinery. Some functional interfaces are reserved in the hydraulic system, which can be expanded according to the technological requirements of different users.6.Equipped with a collapsible auxiliary tower, it can lift two 3m/drill drill pipes at the same time. Detailed Photos customizableTricone Drill bit, pdc bit,water well drill bits, geothermal well drill bits,Assemble the drill bit, the cone piece,Rock drilling tools, forward and reverse circulation drill bits,Drag bit, special drill bit for superhard formation,DTH drill bit Our AdvantagesShandong Yikuang Drilling Technology Co., Ltd. is mainly engaged in pneumatic water well drilling rigs, core drilling rigs, soil drilling rigs, pneumatic drilling rigs, hydraulic drilling rigs, sampling drilling rigs, exploration drilling rigs, package drilling rigs, water well drilling rigs, horizontal drilling rigs, and mining equipment , Drilling rigs, piling rigs, drilling rigs and a series of products. If you have any questions about related products, you can call or leave a message directly, and we will arrange professionals to analyze and guide you one-on-one. FAQQ: Are you a manufacturer or trading company?A: We are a specialized manufacturer. Q: What are your main products, and used for?A: Our products include core barrel, casing, drill rod, drill rig and other drilling parts.They are used for mineral exploration, geological drilling, Q: How about the delivery terms?A: 1.Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery2. Min. order quantity: 1 piece.3. Transportation: By sea, train. Q: How about discount?A: Price is based on products and order quantity. Q: Do you accept sample order?A: Yes sure, please contact us for details.Q: Where is your factory located in?A: Our factory is located in Linqing city, Shandong province, China. Q: How does your company control the quality?A: Quality first. In order to guarantee high quality for our products, our always make a serious inspection for all products and raw materials in strict procedure.We have obtained certi
