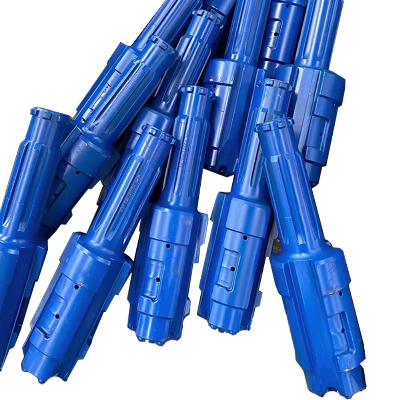

Casing Shoe Hammer Drill Miningwell Eccentric Rings Odex Drilling System

Dminingwell Concentric casing system tube symmetric concentric overburden casing drilling system rock drilling bit concentric bitSizeOD of casing pipe(mm)ID of casing pipe(mm)Wall thickness(mm)Center drillbit mostLarge outer diameter(mm)Perforatedsize(mm)Allow passdrill bit diameter(mm)Matching DTH HammerWeight (KG)P114/9-8411494109412684COP34/DHD3.5/MW3.510P127/10-931271071010514293COP34/DHD3.5/MW3.516P140/10-971401201011616197COP44/DHD340(MW4)/SD4/QL4021P146/10-11014612610124165110COP44/DHD340/(MW4)/SD4/QL4022P168/12.7-127168142.612.7141188127COP54/DHD350(MW5)/SD5/QL50/M5027P178/12.7-131178152.612.7150196131COP54/DHD350(MW5)/SD5/QL50/M5032.5P194/12.7-145194168.612.7166214145COP64/DHD360(MW6)/SD6/QL60/M6042.5P219/12.7-170219193.612.7191243170COP64/DHD360{MW6)/SD6/QL60/M6058P245/12.7-195245219.612.7214268195COP84/DHD380/(MW8)/SD8/QL8078P254/12.7-203254228.612.7224276203COP4/DHD380(MW8)/SD8/QL8084.5P273/12.7-223273247.612.7241298(305)223COP84/DHD380(MW8)/SD8/QL80100P325/12.7-276325299.612.7292350276COP84/DHD380(MW8)/SD8/QL8O135P406/12.7-350406380.612.7377442350DHD112(MW12)/QL120/SD12/NUMA120280P508/12.7-416508482.612.7478545416QL200/SD18/NUMA180/MW18522P560/12.7-475560534.612.7528595475QL200/SD18/NUMA180/MW18620P610/12.7-513610584.612.7558645513QL200/SD18/NUMA180/MW18710  1. Structure of concentric casing systemCasing shoe: Used to connect the casing tube.Ring bit: Used to connect the pilot bit and casing shoe.Pilot bit: The major structure of concentric casing system,with buttons and flushing grooves, etc.2. Operation procedure1. Concentric system drilling through overburden2. Reverse rotation of the hammer and pull out the pilot bit.3. Replace the pilot bit to normal bit to continue drilling 3. Scope of application:Applicable to overburden with complex dry geological conditions, such as pebbles, cracks, dry rocks, boulders, construction backfill waste, etc. Drilling holes at any angle with high straightnessThe maximum hole depth can reach 150 meters4. Structural advantages:Straightness: Under different geological structures, the straightness of hole formation can be guaranteedAdaptability: In complex geological structures, such as pebbles and construction waste, the drilling efficiency can be guaranteed.Less Torque: Less torque compared to eccentric drilling system.Easy to Unlock and Relock: Easy to relock after unlocking.Drilling at any angle: the concentric tubular drilling tool can drill in vertical, horizontal and inclined states.Environmental protection: Compared with eccentric drilling tools, it is more suitable for construction in urban areas because of its stable drilling, low vibration and low noise.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
