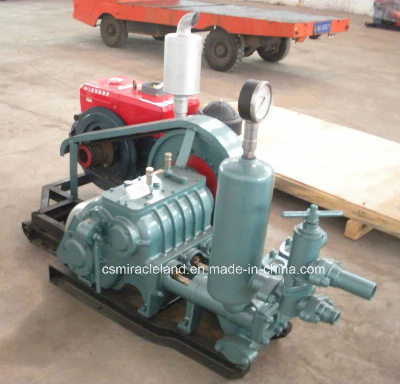

Horizontal Triplex Piston Mud Pump (BW-250)

Description:BW-250 mud pump is a horizontal triplex single-acting piston pump. For this drilling pump. two cylinder diameters and four shifts of speed are available. Triplex mud pump with large cylinder diameter (Φ80mm) is applicable for large-diameter drilling machine, while pump with small cylinder diameter (Φ65mm) is suitable for small-diameter drilling machine. Both of the mud pumps enjoy four shifts of displacement and suite well for different hole depths and diameters. This drilling pump is also perfect for cement mortar grouting with the water cement ratio reaching 1:1.With sophisticated structure and new materials in China and abroad, small volume and light weight, easy assembly and disassembly as well as long service life of high wear parts, this mud pump enjoys superior performance.Technical Figures:  BW-250 MUD PUMPTypeHorizontal, triplex, reciprocating, single acting piston pumpStroke100mmBore80mm65mmPump speed (s.p.m)200  116  72  42200  116  72  42Output volume (l.p.m)250  145  90  52166   96   60  35Discharge pressure (Mpa)2.5 4.5 6.0 6.04.0  6.0  7.0  7.0Volumetric efficiency85%Mechanical efficiency85%Total efficiency70%Input power/speed (kw/r.p.m)15/1500Multiple grooved pulley D.P (mm)410(B groove*5)Input speed of pump (r.p.m)500Max. suction head (m)2.5Inside diameter of suction hose (mm)76Inside diameter of discharge (mm)51Overall dimensions (mm)1100*995*650Weight (kg)500(without power)BW Series Size Mud Pumps Available:BW-120, BW-145, BW-150, BW150/1.5, BWZ-150, BW-160, BW160/10, BW-160H, BW-200, BW-250, BW-280/12, BW-280/30, BW300/12, BW-300/12B, BW-300/16, BW-320, BW-350/15, BW-450, BW-450/5, BW-600/10, BW-800/15, BW-1000/12, BW-1500/12, BW-2000/12, BW-2500/16.Horizontal Directional Drill Series Pumps:BW-100, BW-150GM, BWF-160/10, BWF-240, BW-250A, BWF-250, BW-320A, BWF-400/10, BWF-600/10./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
