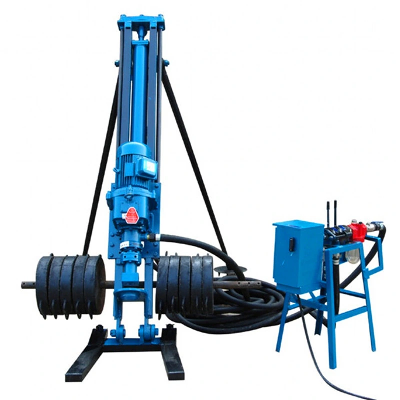

pnuematic impact portable blasting mining construction foundation Anchor Drilling RigProduct Description:The electric drilling rig is the equipment that converts the electric energy andcompressed air into mechanical energy to break rock. After electrify, the drilling tool is driven by the torque produced by cycloidal reducer through the intake seat. Compressedair are divided into two way after going through oil mist device and pneumatic valve: oneway enters into the cavity of promoting cylinder, which produces an axial force drives thedrilling tool to promote or elevate through the cylinder piston and guide rod; the other wayenters into the impactor through the intake seat, so as to achieve impact drilling.Product details:Model YGD 70 YGD80YGD 100YGQ 100 YGB100-4 YGB120-5.5Drilling diameter (mm)50-90/90-12090-13090-13090-130Rock ruggedness coefficient>20>20>20>20Drilling depth (m)15252530-40Rotate speed (r/min)110110110110Working air pressure (Mpa)0.5-0.70.5-1.00.5-1.00.5-1.0Air comsumption (m3/min)461210Propulsion stroke (mm)90140140140Max propelled force ( N)3600/8000960096009600Electric motor power (kw)3/44-----4/5.5Electric Motor Voltage( V)380380-----380Rated speed (r/min)1440144032001440Drilling rod (mm)4250/6050/6060Drilling rod length (mm)1025102510251025Dimension (mm)1740*260*4202280*440*5502230*380*5502230*380*550Weight (kg)280/320470450460/480Product Features:(1)light weight(2)Suitable for the place where large and medium rock drill can not work(3)Flexible, electric motor,noiseless and powerful(4)Fast Drilling speed horizontal and verticalProject Case:Packaging & Shipping:Company Information:Henan Yugong Machinery Co., Ltd, located in Zhengzhou,Henan province,China.Its a large engineering machinery manufacturing enterprise which focus on research and development, production and sale kinds of drilling rigs.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on.We insist on the strategy of technology research and development. Technical design, material purchasing, precised manufacturing and strict quality inspection are all processed according to the ISO9001 standard. Sincerely hope we can establish close,trustworthy and long term relationship with each customers. Any interests and needs about our Drilling rigs,please contact us.Our service:Contact Us: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
