High Efficiency Hydraulic Mining Exploration Blasting Hole Drilling Rigs

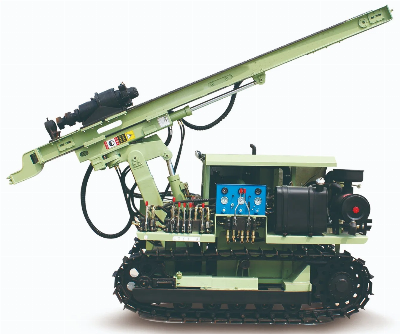

Product Introducthigh efficiency hydraulic mining exploration blasting hole  drilling rigs        CTQ-D100YA2-2F crawler hydraulic drilling rig, adopts new type hydraulic rotary motor, has high rotary speed, large torque and low failure rate. This rig has low air consumption, convenient for shifting holes, uses air filter and oil filter total  three-stage filters to reduce engine wearing , increase working life of the diesel engine. The rig structure is compact, the minimum moving radius is 2.8m, and the skid mast has compensation function. when drilling, the skid mast supported on the ground that guarantee good drilling stability.The drilling rig is mainly capable for open mining, water conservancy, power plants, road building and other rock blasting holes drilling.Technical ParametersBore diameter(mm)90-130Bore depth(m)30Walk speed(km/h) 2Once promotion(mm)2000Grade ability (°)30Air pressure(Mpa)0.7-1.4Chassis ground clearance(mm) 260Air consumption(m³/min) 7-15Skid pitch(°)Up,Down Total 100Host Power (Kw)  33Skid tilt swing (°)Left 35,Right 10 For rock(F)6-20Skid compensation(mm) 900Dimension(L*W*H)(mm)     4300*2130*2160Weight(Kg)2900Product Display Product Application Company ProfileTaian Longye Import And Export Trade Co.,Ltd. is a manufacturer,specialized in the production of blasting drilling rig,solar pile driver,water well drilling rig and accessories such as portable screw air compressor,drill pipe,drill hammer,drill bit,etc.Our company is a backbone enterprise in the industry. Our company is located at the foot of Mountain Tai which has the reputation of "Chief of the Five Sacred Mountains", neighboring to Beijing-Shanghai High-speed Way, with convenient transportation and excellent location. Your satisfaction is our promise. Our company covers an area of 35,000 square meters, and has more than 160 employees, including 20 engineering technicians, who all are specialized drilling rig mechanical design talents.  Our company has more than 30 sets of advanced CNC machining equipment and more than 10 sets of special processing equipment. Our company has our own heat treatment production workshops and surface treatment equipment.  On the basis of advanced production equipment and more than 10 years of experience, our company has developed and produced three series of products, including high, medium and low-grade air pressure equipment. 15 kinds of products sell well throughout China, Russia, Kenya, Brazil, India and some other countries in Europe.  Customer VisitShipping and Package FAQQ1: What's your delivery time?A: 15 days to produce, within 3 days if in stock. Q2: What's methods of payments are accepted?A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal. Q3: What about the shipments and package?A: 40' container for 2 sets, 20' container for 1 set, Machine in nude packing, spare parts in standard export wooden box. Q4: Have you got any certificate?A:We have got ISO,CE certificate. Q5: How to control the quality?A: We will control the quality by ISO and CE requests. Q6: Do you have after-sale service and warranty service ?A: Yes, we have.We can supply instruction for  operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.Warranty is one year  for the machine. ContactTina Yu      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
