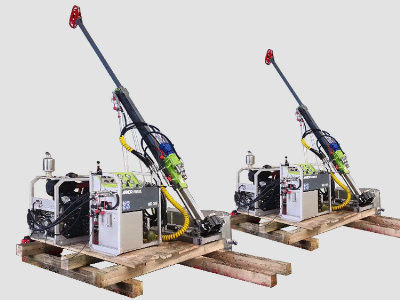

Soil Investigation Drilling Rig Ground Geological Exploration Machine

  Product DescriptionModular lightweight design, the heaviest module is less than 180kg, quick disassembly and assembly, manual handling; mast-type drilling frame structure, no drilling tower, can be drilled at any angle of 45°~90°; top drive type power head, 1.83m long Stroke guide rail, oil cylinder advance, no need to repeatedly reverse the rod, good orientation and orientation; the machine occupies a small area, no basic engineering is required, and it is environmentally friendly.Strong operability, hydraulic automatic shackle, low labor intensity; stepless speed regulation, high speed can be opened, stable drilling process, small vibration; real-time grasp of hole conditions, limited pressure protection, safety; simple maintenanceThe cost of road construction can be reduced through manual relocation, and the damage to the ecological environment can also be reduced. The practice shows that it only takes 4 hours to complete dismantling, relocation, installation and opening.Detailed Photos  Product ParametersModelMD1000Drilling depthBTW: 1200mNTW: 1000mHQ: 500mPower3xKubota V1505D 33kw/3000rpm Max. Flow of Hydraulic system200 L/min (with pump & mud agitator) Max. pressure of Hydraulic system280 barMax. rotate speed of power head1300 RPMMax. torque of power head1500 N.mFeeding stroke1.8mMax. lifting force130 KNRope capacity of hoist1200m/6mmMax. pull force of hoist9500 NMax. module weight180 kgPackaging & ShippingCompany ProfileQingdao Qingchi Intelligent Technology Co., Ltd. is a large-scale professional manufacturer of high, medium, and low wind pressure DTH drilling rigs and water well drilling rigs in Shandong Province. Products include more than 50 kinds of 6 series. The main products are KQZ series DTH drilling rigs, follow-up pipe series, FY series water well drilling rigs, high, medium, and low wind pressure engineering drilling rigs, etc.The company has been committed to the professional production of water well drilling rigs and down-the-hole drilling rigs and the sales and maintenance of drilling tools and air compressors for more than 20 years. Accumulated a wealth of professional maintenance technology and thoughtful and meticulous after-sales service experience. It has accumulated a large amount of usage data through extensive contacts with users.The company independently developed a new generation of water well drilling rigs and obtained a number of national patents. This series of products have the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economical and durability, and low failure rate. Once launched, it has been recognized by the market and is widely used in mining engineering construction, civil drilling, geothermal drilling, and other fields. The comprehensive cost performance of this series of products is leading and has won a good reputation in the market, becoming the first choice of users everywhere.The company always stands on the user's point of view, pays attention to user needs, implements quality standards, makes "Qingchi" brand series drilling rigs closer to user needs, and forms the market management concept of "user needs, Qingchi pursuit". The company always firmly believes that "the market is the only standard. Other productOur teamFAQ1. Q: What kind of terms of payment can be accepted?A: Normally we can work on T/T or L/C.2. Q: Which incoterms 2010 terms can we work?A: Normally we work on FOB, CFR, CIF, EXW, DDU.3. Q: What about the delivery time?A:7 days after receiving the deposit.4. Q: What about the warranty time?A:12 months after shipment, the engine is 6 months.5. Q: What about the Minimum Order Quantity?A: The MOQ is 1 set.6. Q: Could you stick customers' brands on the products?A: We warmly welcome the OEM orders.Click hereto send us messages and inquiries./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
