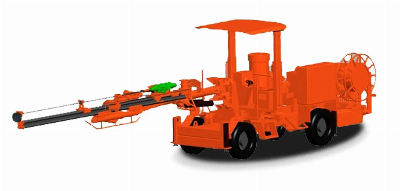

Tyre Face Drilling Rig Dw1-31

GeneralFOPS-approved telescopic protective roof Hydraulic driven piston compressor Working lights Montabert HC25 rock drill Piston compressor and water pump 3.0 m slider for the rock drill Hydraulic drilling boom Special design heavy duty with double tripod suspension. For accurate mechanical parallel holding in all directions Telescopic boom can make up of the angle when drilling The hole of bottom, thus no blind angle left. The square section of boom increases mechanical stability. The Helac rotary actuators is located in front of the boom, It can make the feed mechanism to rotary ± 180 degree. Hydraulic systemThe hydraulic oil tank be set at high position, and the oil Pump at the bottom, the design makes sure system can Work with low pressure. The appropriate flow with high efficient water cooler enSure the temperature of hydraulic system keep at a normal level after long operating time. Multi-filter in the hydraulic oil tank, it can keep cleanliness Of oil and reduce the risk of hydraulic system failure.   Drill speed  0.8 - 2 m/min  Drill rod length  4310/3700/3090mm  Hole diameter  Φ28 mm - Φ102 mm   Hole depth (once)  4015/3405/2795 mm  Cross section (W*H)  ≤6.0 m *6.0 m  Traveling speed  12 Km/h  Rock drill  HC50/HC109  (Montabert)    Overall dimension       (L*W*H)  11000*1650*2930/2230 mm    Weight  10000 kgProduct DisplayCompany ProfileShipmentOur CustomerExhibition/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
