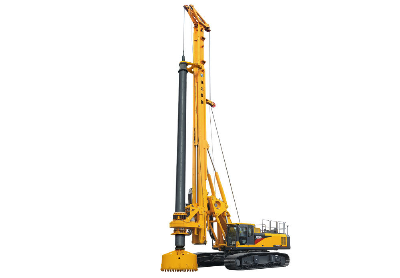

Hydraulic Piling Driver Xrs1050 105m Depth Rotary Drilling Rigs

Hydraulic Rotary Drilling Rig XRS1050   Product Information:Adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearingto provide extraordinary stability and transport convenience.Cummins electric control turbo-supercharged engine to provide strong power and conformitywith Euro III emission standard. With the hydraulic pressure system adopted threshold powercontrol and negative flow control, the system acquired high efficiency and higher energyconservation.Using single rope winding, effectively solve the steel wire rope wear problem, improve the lifeof wire rope; And drill deep detection device is setted in main winding,single rope to make deepinspection more accurate.Several drilling rod configurations with different specification areavailable for efficient construction on different layers.The whole machine design meet the requirements of the CE directive, safety guarantee,construction safer. The optional centralized lubrication system, maintenance more convenient. The detachable unit head drive key can provide easy maintenance and replacement.Technical Data:DescriptionUnitParameter valueMax. drilling diametermm2500Max. drilling depthm105Allowable luffing scope (from center of   drill rod to slewing center)mm4350~4650Drilling rig dimension in working condition (L × W × H)mm10265×4800×27520Drilling rig dimension in transport condition (L × W × H)mm10265×4800×27520Weight of overall unit (standard configuration, excluding drilling tool)t108EngineModel CUMMINS  QSX11-C400Rated power/speedkW298/(2100r/min)Max. working pressure of hydraulic systemMpa35Rotary driveMax. torquekN •m390Rotational speedr/min7~18Crowd  cylinderMax. Pushing forcekN240Max. Pulling forcekN320Max.strokemm6000Main winchMax.pulling forcekN400Max. single-rope speedm/min60Diameter of the steel wire ropemm40Drilling mastLeft/right inclination of mast°4/4Front/back inclination of mast°5/15Rotary table slewing angle°360CrawlerWidth of crawler platemm800External width of crawler (min.-max.)mm3500~4800Center distance between two longitudinal wheels of crawlermm5600Average ground pressurekPa120.7Details Photo:Transportation:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
