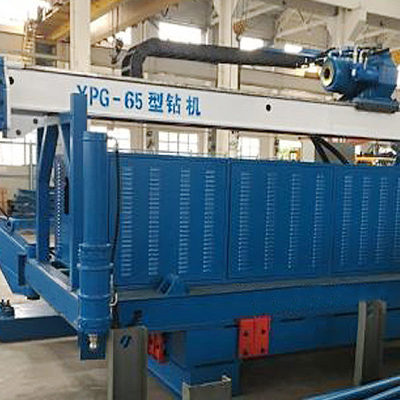

Xpg-65 High Pressure Rotary Jet Drilling Rig Machine Mine Drilling Rig

Main Feature:Removable 20-meter sub-tower1. In rotary jet construction, it can replace overhead rotary jet, reduce the number of dismantling drilling tools, save timeand materials, and reduce potential quality risks2. During the construction of anti-floating anchor rod, the anchor rod can be lifted, which saves the crane cost.3. The detachable auxiliary tower can be detached during the construction of the diagonal anchor cable without affectingother functions of the rig.4. In the construction of short bolts, one shot can be used to the end, saving time and effort.5. The auxiliary tower is of standardized design, and 4 sections can be freely combined into 5 meters, 15 meters, and 20meters.Large through hole gyrator1. The through-hole diameter is 92, which can ensure the unobstructed passage of 89 drill pipes. Can meet the triple-rotationspraying construction and anchoring construction.2. Ordinary 89 steel pipe can also be used for anchor construction.3. Hydraulic chuck structure can make drilling tool replacement more convenient and free. No more worrying aboutvarious transition joints.4. High-torque power head, in conjunction with our enhanced rotary jetting drill, can be used in rotary jetting in mostformations without pilot holes, which saves a lot of cost and time.Scope of Application:1.High pressure rotary jet2. Deep foundation pit support3.Anti-floating anchor4.Miniature cast-in-situ piles5.Miniature steel pipe piles6. Precipitation wells7. Geothermal constructionTechnical Parameters: SpecificationXPG-65Hole Diameter(mm)Φ150~Φ250Hole Depth(m)150~180Rod Diameter(mm)Φ73,Φ89,Φ102,Φ114Jrt GroutingSingle,Double,TripleStake Diameter(mm)400-600,600-1200,800-1600A joint Pipe7000,12000,17000,22000Hole Angle(°)0~90Output Rotary Speed of Power Head (r/min)0~12,0~25,30,60,75,120,150Output Torque of Power Head (Nm)5800Stroke of Power Head(mm)4000Stroke of Slide Frame(mm)1500Lifting Force of Power Head (KN)66Lifting Speed of Power Head (m/min)0~1.3 Adjustable/8/18/27Feeding Force of Power Head (KN)34Feeding Speed of Power Head(m/min)2.5 /16/36/53 m/minInput Power(Electromotor) (KW)55+11+3Dimension(L×W×H) (mm)6385×2050×2550Construction(L×W×H) (mm)6385×3340×27530Weight(kg)8200Q: Are you trading company or manufacturer ?  A: We are factory.  Q: How long is your delivery time?  A: Generally it is 5~10 days if the goods are in stock.Or it is 45 days if the goods are not in stock, it is according to quantity.  Q: What is your terms of payment ?  A: Payment=1000USD, 50% T/T in advance ,balance before shipment. irrevocable LC at sight. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
