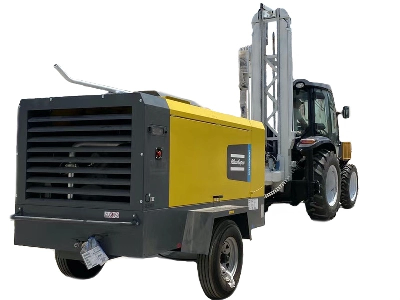

Air Compressor With Tractor Mounted Hydraulic Rotary Drilling Rig

Air Compressor With Tractor Mounted Hydraulic Rotary Drilling RigAir Compressor Truck With Rotary Drilling Rig/ Tractor With Rotary Drilling Rig  Main features:This rig has very compact structure, the engine of chassis could be adopted 180hp,210hp diesel engine, the engine is made by SINOTRUK,FAW,DONGFENG. The drilling rig has independent diesel engine (FAW DEUTZ-WP6G125E22), the power is 92kw. Not only meet the drilling requirements, but also reduce energy consumption, it is very affordable.This rig is design principle is an advanced hydraulic cylinder for drilling, stepless lift, it can be achieved automaic drilling. it can automatically adjust the drilling speed for different geological conditions.The drilling process can be achieved in pressruized drilling technology, adjust different pressure for different geological conditions, and can be viewed drilling pressure by pressure gauge. At the same time, it can adjust the drilling speed.The drilling rig can achieved fast drilling by manually, especially for soil. It can achieved different speed for different soil.It has a large lifting force hydraulic main hoist, stepless lift, and to achieve release rope quickly. When upgrading heavy, the lifting speed need slow to aviod crash the turntable and wellhead board. When put down single drill pipe, operate the quick handle, it can achieved release rope quickly like mechanical hoist.It has a hydraulic tool hoist, the tool hoist has large lifting force and quick lifting speed, it is both easy to loading drill tools, drill pipe and drill accessories transport, and can slide up and down with anchors, its very convenient to load and unload the drill pipe. It has a hydraulic cylinder control double card board forward and backward, it makes the insurance card board closed, to achieve stuck or release the pipe joints.It use integrated design of pneumatic, to achieve the BW850/2A mud pump clutch using pneumatic remote control, it has high degree of automation and easy-saving operation.It is installed 4 hydraulic legs and 2 mechanical legs, every hydraulic leg rod with locknut. After leveling the rig, it can lock the cylinder   use locknut. So, even if the cylinder leaks, the chassis is not instability.The turntable use stir bars, internal turntable use spiral arc gear to transmission, it has large torque, it about 2 times of similar products at domestic and foreign.It also could be installed a generator (30kw) instead of the independent engine, so that it is convenient to illuminate or work at night.The hydraulic system use open system, the chassis and drilling rig are separately manipulated, it can avoid misuse. Winter oil heater and summer oil radiator are installed, to adapt to different seasons hydraulic oil for heating and cooling.This drilling rig equipped with an auxiliary unloading cylinder, it can be used to promote the turntable ratchet, to achieve auxiliary unloading the drill pipe.Production ProcessProduct detailsCertificationsCompany informationWe're one professional manufacturer which refitting special truck and trailer in China, established in 1969, more than 40 yrs producing experience, a growing enterprise with endless innovations and development. Our corporation mainly specializes in the various semi trailers and special vehicle related business, such as dump truck, tanker trailer, concrete mixer truck, and etc. Also, our business line ranges from the research, development, and design to the manufacture and sales for other automobile accessories, especially for axles and hydraulic cylinders. We're one of the earliest company to get the approval of the ISO, CCC and Compulsory Product Certification Enterprises. We have exported more than 30 countries from 2005.Looking forward to your visiting or calling.Cooperation PartnerPackaging & Shipping  Drive wheel4x4ModelTractor as your request Maximum output100~180HP Emission standardEuro II Number of cylinder6-cylinder in-line with water cooling, turbo-charging and intercooling  Transmission6/ 7 forward speedFront Axle A1H     6TRear Axle 435  (rate:5.571)   Frame280*90*8mm Fuel tank 300L aluminum alloy tank Wheel Base(mm)4725Wheels&TiresTire:11R22.5-16 Model, descriptionClosed cabin Air ConditionerOptional Operating voltage 24v Starter, Alternator China brand Overall Length 7973mm Overall Width 2496mm Overall Heigth 3990mm Max. deepth100~200m             The hole diameter100-300mm          The drilling rod length2000/ 3000 mm     The drilling rod diameter76-108mm           Work pressure1-3.45MP             Air flow16-35 m3/minute     Shaft pressure7 tons               Lifting capacity15 tons              Rotary torque4000-7000 N.m       Rotary speed0-80rpm             /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
