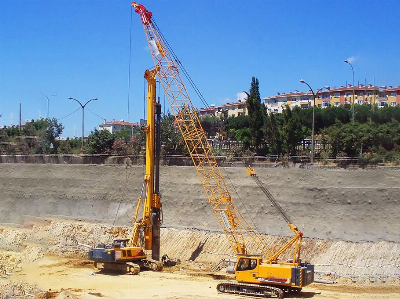

Brand New 120kn Borehole Drilling Equipment Rotary Drilling Rig

Brand New 120Kn Borehole Drilling Equipment Rotary Drilling RigProduct DescriptionXR120D small piling rig machine 120kn 44m rotary drilling rig introduces the back-inclination large triangle structure with stationary luffing support, which is suitable for working conditions of low-tonnage drilling rig, improving the rigidity of working mechanism and enhancing the stability of whole drilling rig while achieving easy transportation; 1, The impor ted Kaawasaki hydraulic parts can achieve reasonable powertrain matching and high construction efficiency; 2, The imported Cummmins engine can minimize fuel consumption with the help of two optional accelerator control modes; 3, The working amplitude of auxiliary winch is increased, which can hoist light and small objects and save cost as well; 4, The main winch is designed with a high displacement motor, achieving more sensitive response and more reliable working and also getting rid of the difficulty in earth dumping for pile holes of small diameter; 5, The standard reducer joint can adjust drill rod combination according to actual conditions, thus effectively reducing fuel consumption and improving construction efficiency; 6, It introduces the proprietary intelligent control system, CAN bus and PLC, including automatic/manual adjustment of drilling mast verticality, depth automatic detection and display, intelligent fault diagnosis and control.   Specification ProjectUnitParameterMax.Drilling Diameter  Uncased(mm)φ1300Cased(mm)-Max.Drilling Depth(m)44Dimension  Working condition L × W × H(mm)7175×3400×16800Transportation condition L × W × H(mm)12580×3400×3360Overall Drilling Weight(t)40Engine  Model-CUMMMINS B5.9-CRated Power(kW)112/1950Hydraulic System  Working pressure(MPa)32Rotary Drive  Max. output torque(kN.m)120Rotary speed(r/min)6~28Spin off speed(r/min)-Pull-Down Cylinder  Max.pull-down piston push(kN)120Max.pull-down piston pull(kN)120Max.pull-down piston stroke(mm)3500Product PicturesCompany information  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
