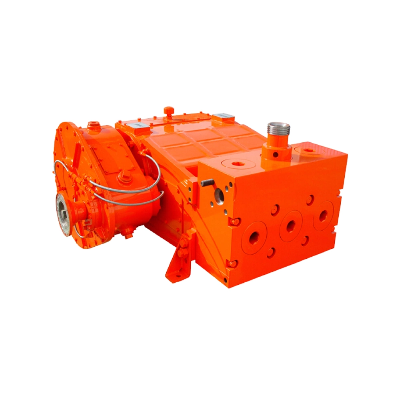

Tz600 Triplex Mud Pump for Oil Drilling Rig

Main structural features:1. It is composed of three parts: power end, hydraulic end and reduction box;2. Adopting a unique design of the external gearbox design, the gearbox can be mounted on the left or right, and there are 16 different installation positions for optional installation, which is easy for the layout and maintenance of the whole vehicle.3. Derived from the SPM600 short pump, the length of the pump casing is increased, the small connecting rod is added, and the plunger and the connecting rod are changed to clamp connection, which overcomes the shortcomings of short pumps that are not easy to maintain. It is suitable for configuration in a single machine. The pump truck (skid) has become the standard product of domestic cementing truck and high-pressure injection equipment.4. It has basic interchangeability with SPM600 pump internal parts.5. There are two different pump head bodies to install four different specifications of plungers (3", 3.5", 4", 4.5") to obtain different pressures and displacements for customers to choose and use.ParametersModelTZ600LMax. input power600hpMax. rpm450Max. Load of extension rod100000 lbs (445000N)Length stock6" (152.4mm)Rate gear4.61:1Dimensions64"x53.87"x23.88" (1626x1366x607mm)Weight5495 lb (2492kg)BEYOND was established in year 2016 and certified by ISO9001. Its main business is to supply drilling equipment and spares for overseas customers from different sectors, like petroleum, water well, and HDD. BEYOND products cover but not limited to: oil drilling & workover rig, water well drilling rig, horizontal directional drilling rig, mud pump and spares, solid control system & equipment, and other different drilling materials. By continuously optimized supply chain, strict quality control and thoughtful customer service, BEYOND focus to offer long-term cooperation value for all of our customers. We can customize the product supply as per its on-site conditions, and we can offer overseas after-sale services with our strong technical support.Thanks to our professional services, quality products, fast delivery and competitive prices, we have built up a very good reputation among our customers. Our products are serving for customers from more than 30 countries, like USA, Venezuela, Argentina, India, Kazakhstan, Uzbekistan, Azerbaijan, Romania and Egypt etc.. With "Professional & Efficient, Customer Focus, Win-win Cooperation" as its business principle, BEYOND believes we will become your trustable and reliable partner in China. We warmly welcome you to be our customers to establish good cooperation and create a bright future with us together. To choose BEYOND, You will get beyond your expectations and we will not let you down.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
