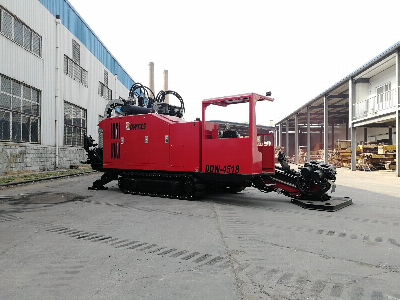

Trenchless Horiztontal Directional Drilling Machine HDD Drilling Rig Ddw-4518

Construction Machinery for sale DDW-4518 DDW-4518 Horizontal directional drilling rig adopts the steel track driven self-contained design with its aesthetic appearance and compact structure. It is applicable for installation of oil and gas pipeline, water supply and wastewater pipe line, as well as power, cable and other pipeline installation project. It is not only suitable for crossing river and channel, but also widely used in crossing road, rail way, airport, coast, island, mountain, tropical rain forests, as well as the area which does not permit of excavation such as crowded buildings, cultural relic presserve zone, pipeline located region. Key features: 1. Heavey-duty chassis, the drill rig is stable and rugged, Steel track with its rubber mat, need not worry about destroy the rod surface. 2. Thrust system is driven by rack and pinion for high transmission efficiency, and long life. 3. Pullback system adopts combination of high speed variable displacement piston motor, reducer and broker for three speed adjustable, and supply high speed and efficiency. 4. Cummins construction machinery desicated enginer for strong power. Fully performance with advantage of machine power requires less energy than competitor's models, but higher efficiency. 5. With 14000 Nm of torque and 45T of pullback force, it is ideal unit for installations of long distance and large diameter pipe. 6. Adopt famous original imported product or owned enterprises product which provide reliable quality and performance, after sales service guaranteed. 7. Optional pipe loader, closed operating cab and hydraulic anchor reduce the labor intensity and saving cost, humanization design is fully reflected. Technical Specifications   DimensionsLength/Width/HeightEntry angle Machine weight Track width7000*2240*2670 mm14-21º12.5 ton350 mmEngineMakeGross power ratingRated speed Fuel tank capacityCummins 179 KW2200 rpm235LDrilling unitTravel speedRear stabilizerHydraulic hose carrierLighting system0-3 km/h, forward & reverse2chain typecabin, rotary headHydraulic systemMax pressure (rotary & carriage)Max pressure (control sys.)Hydraulic tank capacity30 Mpa23 Mpa500 LOperator stationCabin Control systemOperation controlsCanopy or full closed, climate control with A/CPilot control Hydraulic leverRotary drive Maximum rotary torqueMaximum rotary speedDrive shaft floating18000 Nm133 r/min66 mmCarriageCarriage systemMaximum thrust/pullback forceMax travel speed Max travel distance rack and pinion drive450KN0-46 m/min4 .1mWrench assembly Wrench designClamp/grip rangeMax breakout torqueMax makeup forceopen-top style60 -130 mm35000 Nm350 KN Pipe loaderTypeSemi- automaticHydraulic anchor systemAnchor operationManualMud pumpOnboard mud pumpMax flow Max fluid pressuretriplex piston pump600 L/min10 MpaMud minxing unitTank capacityMud pipe inlet3 m33" * 8 m Drill pipe Length ( each section) Outside tube diameterThread type3000 mm83mmD80Pilot drill bitBeacon housingsuitable for wireless/wireline transmitterToolsBack reamer Diameter 330, 430, 530, 630, 730, 820, 920 mm  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
