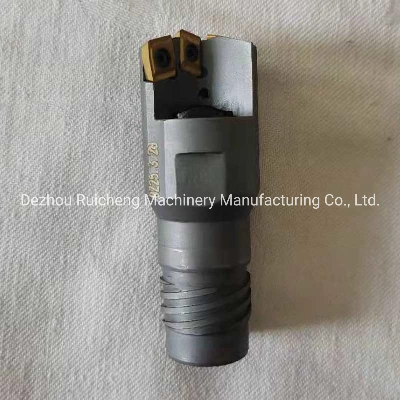

High Performance Deep Hole Drilling BTA Metal Drilling Tool

The BTA (Boring & Trepanning Association) System was developed largely by an international group of tool manufacturers. This system was one of the first successful  systems of internal chip removal tools, and includes a drilling, a boring, and a trepanning head and is considered the best system in hole making work that utilizes high pressure coolant tools. In the BTA system hole making process, fluid under pressure flows to the setting edge over the O.D. of the boring bar and head, and exhausts with the chips through the I. D. of the boring bar. Clean filtered fluid flows constantly over the outside of the head, thus lubricating the guide pads which act as a burnishing tool to produce a smoother finish, and capable of high rate of feed. Hole depth is obtainable as much as 150 diameters or deeper.Feature:1. High quality and competitive price2. Develivery goods in timeThis BTA drill  head adopt imported indexable coating blade, it has the advantage of high efficiency, change blade easily, long  service life  , low using cost.  And it can drill  on carbon steel, high strength alloy steel ,stainless steel and so on.precision of hole diameter IT9-11.  Surface roughness:Ra6.3-12.5Specification:Bit specification bit specificationdrill tube sizeBit specification bit specificationdrill tube size17.8-19.51643 45 474019.51-21.9917.548 50 524322-24.9920554825-26.992357 58 605227-29.992562 63 655630-31.992768 70 726134.5-3530756538-42358070Factory IntroductionDezhou Ruicheng Machinery Manufacturing Co., Ltd, located in Dezhou City, Shandong Province, the "Hometown of Deep Hole Processing" in China. It is an industrial and trade enterprise integrating of R&D, manufacturing and sales. The factory have very convenient transportation because of 300km to Beijing Daxing International Airport and nearly 250km to Qingdao Port.The company was founded in 2009, has 10 experienced technicians, 15 sets of high-precision production and testing equipments. That is why we are confident with the delivery time and quality.The company's superior products: scraping and rolling machine and tools, deep hole drilling machine, deep hole boring machine, deep hole honing machine and deep hole BTA drills, deep hole trepanning machine and tools, deep hole boring heads, deep hole expanding tools, reaming tools, honing More than a dozen product types and hundreds of specifications such as deep hole drill inserts ,guide pads, drill (boring) bars, etc. Widely used in military industry deep hole processing, coal hydraulic cylinder processing, hydraulic parts, aerospace industry, automobile engines , energy and other fields. We focuses on R&D and innovation, and strictly inspects of product quality to meet the needs of different customers. Famous in Iran, India, Singapore, Pakistan, Indonesia, UAE, Russia,India and other countries.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
