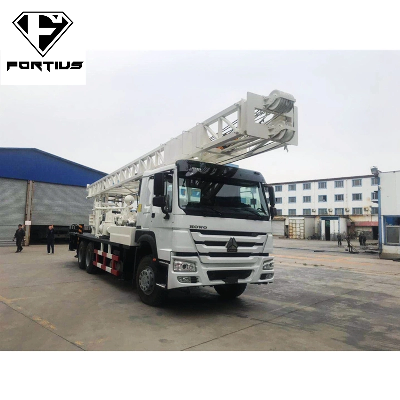

Sinotruk 400m Truck Mounted Drilling Rig for Drilling Water Conservancy Projects

      SINOTRUK 400M truck mounted drilling rig for drilling water conservancy projects  Drill depth(m)400Open hole diameter(mm)500Rotarytable rotate speed(r/min)41;62;92(reverse)Rotarytable Max rotate torque(kN.m)15;10;8.1Winch lifting capacity(KN)40Swivel load(T)28Kelly(mm)108x108x7500Drill rod(mm)¢89×10×6000Drilling Diesel engineCummins 112kW/2200rpmMud pump model: BW850cylinder(mm):150stroke(mm):180Frequency(min-1):82 58Displacement(L/min):850 600Pressure(MPa):2 3Generator30kwchassisHOWO6×4EnginemodelWD615.87Horsepower290HP,EURO IITransportation size(mm)12500×2500×4000        Advantage:1.BZ400CHW SINOTRUK 400M truck mounted drilling rig is a kind of rotary drilling rig,the chassis adoptsSINOTRUK HOWO 6X4 special vehicle, the diesel engine, main transmission system,gear box,double mechanical winches,mud pump, rotary table, mast, steel wire feeding system are on the chassis.  2.The chassis diesel engine and drilling diesel engine are separate.The drilling diesel engine is DONGFENG Cummins 6BTA5.9-C150 112kw water cooled four stroke supercharged intercooled constructionpurpose diesel engine and suitable for severe environment  3.It is drilling with mud mainly ,equipped with mud pump BW850/2 horizontal reciprocating double cylinderdouble acting piston mud pump.It can do air drilling with air compressor eg. Atlas, Sullair, Kaishan etc.  4.The main transmission is mechanical. It has hydraulic mast,four hydraulic jacks,two mechanical jacks. With a generator supplying the lighting at night and welding.5.The drilling machine has beautiful appearance, big rotary torque and fast penetration. It is suitable for drillingwater conservancy projects, industrial deep water Wells, national defense construction, hydrologicalexploration, geothermal mine Wells and other engineering foundation holes. It is well received by customers at home and abroad.                                                        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
