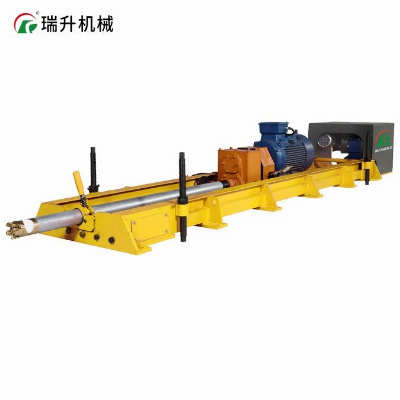

Ruisheng Stone Mining Granite Marble Automatic Horizontal Drilling Rig

  Product Description This machine is used for drilling horizontal  hole for passing through the diamond wire saw during stone quarrying .It has the following features:high drilling efficiency ,long life,esay hole-joining,high precision,etc.The walking motor and the inverter are used for automatic power feeding device.The real-time main motor current and the walking motor rotation speed are displayed on the control platform.The power control cable between the main machine and the control platform is connected by the aviation plugs.The operation and installing of the machine are convenient.the control mode adopts electrical automatic control principle to maximize the drilling speed and achieve the energy-saving and emission reduction effect.Meanwhile ,it reduces the intensity of labor.   UNITRS-75HDMRS-75HA1RS-75A2OPERATION MODE ManualAutomaticAutomaticMAIN MOTOR POWER 15kw (4P)15 (4P)15 (6P)DIAMETER OF DRILL HOLE Φ75Φ75Φ75MAX.DEPTH OF DRILL HOLE Max.30Max.30Max.30SPEED OF DRILLING 3~53~53~5SINGLE FEEDING DISTANCE 1.51.51.5SATER SUPPLY PRESSURE ≥0.2≥0.2≥0.2DRILLING DIRECTION HorizontalHorizontalHorizontal  2570*770*5152570*770*5152570*770*515  95010001050  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
