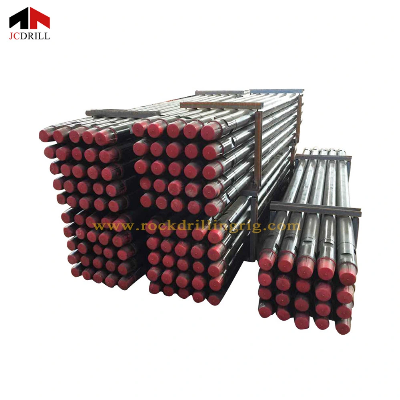

Mining Rock Threads Diamond Core Drill Drilling Rod Tool

Mining Rock Exploration Bwl Nwl Hwl Pwl Wireline Wl Threads Diamond Core Drill Drilling Rod ToolApplication                                                                                                                                                           Q thread rods are the undisputed, worldwide choice for wireline coring drill rods.1. high quality alloy tube2. thru-wall heat treated tube body3. consistent concentricity, straightness4. tapered threadsTUBINGHigh quality alloy steel tubingConsistent concentricity, straightness and heat treatmentAll tubing available in DCDMA sizesTHREADTapered, course threads (3 threads per inch) provides easy make and breakLoad efficiency of 30% provides sufficient strength for average applicationsTHRU-WALL HEAT TREATMENTProvides 140% material strengthHeat treated box threads significantly increases thread wear lifeCASE HARDENINGSignificant research, development and field testing has resulted in a hardening process that is unmatched in the marketplacePin thread crest is hardened to nominal 55 HRc to eliminate damaging 'adhesion' wearEliminates the transfer of wear material back and forth which is what happens between threads of equal hardness, leading to large scale galling and joint seizingCharacteristics                                                                                                                                                   Wireline Drill RodDescription of Wireline Drill Rod:This wireline drill rod is the equipment that connects the drilling tools and drilling bits, and it is mainly used to transmit power. It mainly consists of a tubing body and two thread ends.The wireline drill rod features good wear resistance, optimal tensile strength capacity and good torsional property.Concerning the packing, it is packaged by iron belts.BQ Bundled Specifications (Steel Belt):3.0m/10ft BQ Drill Rod (37 Pieces)Dimensions (L×W×H): 3.0×0.4×0.4Volume: 0.5 m3Gross Weight: 670 kgBQ Bundled Specifications (Iron Frame):3.0m/10ft BQ Drill Rod (30 Pieces)Dimensions (L×W×H): 3.0×0.35×0.3Volume: 0.32 m3Gross Weight: 550 kgNQ Bundled Specifications (Steel Belt):3.0m/10ft NQ Drill Rod (37 Pieces)Dimensions (L×W×H): 3.0×0.5×0.5Volume: 0.75 m3Gross Weight: 900 kgNQ Bundled Specifications (Iron Frame):3.0m/10ft NQ Drill Rod (25 Pieces)Dimensions (L×W×H): 3.0×0.38×0.39Volume: 0.43 m3Gross Weight: 610 kgHQ Bundled Specifications (Steel Belt):3.0m/10ft HQ Drill Rod (37 Pieces)Dimensions (L×W×H): 3.0×0.625×0.625Volume: 1.2 m3Gross Weight: 1300 kgHQ Bundled Specifications (Iron Frame):3.0m/10ft HQ Drill Rod (25 Pieces)Dimensions (L×W×H): 3.0×0.46×0.47Volume: 0.65m3Gross Weight: 890 kgSpecification                                                                                                                                                             No SizeDrill rod OD mmID mmThread typeHeat treatmentRaw materialDesigned hole depth 1S565344China standard  1000m2 3S59 S7555.5 7146 61China standard 45MnMoB1000m 1002m4S958979China standard  600m5 6S75AS95A 61 79 heat treatment the Thread45MnMoB1500m 1300m7 8 9CBH CNH CNH (T)Both side were enhanced44 61 61Factory standardHeat treatment the whole pipe30CrMnSiA XJY8502500m 2300m 3000m10CHH 78  30CrMnSiA1800m11CSH127114.3  S1353000m12BQ55.646   2000m13NQ70.560.5DCDMAHeat treatment the wholeZT8502000m14HQ8977.8standardpipe 1500m15PQ114.3103.2  ZT520800m   Packing& Delivery                                                                                                                                                 Service                                                                                                                                                                In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
