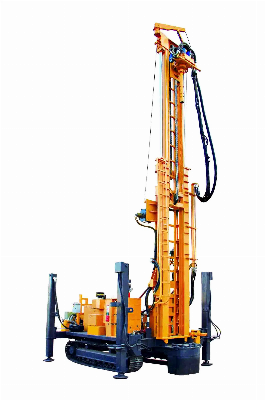

600 Depth Hard Rock Water Well Drilling Rig

I. Brief IntroductionSL600S water well drilling rig is a top-drive, high-efficiency, multi-functional full hydraulic drilling rig, easy to use, high operating efficiency, reliable and durable, widely used in drilling water wells, detection wells, dewatering wells, rescue wells, ground source air conditioning holes, coal bed methane, natural gas, oil mining and other projects.It can be drilled either with compressed by DTH hammer drilling or with mud pump by cone bit/drag bit drilling in various formations in high temperature areas, high cold areas, and plateau areas, in the range of rock hardness f=4-20 with efficiency high drilling speed. The drill mast motions like lifting and adjusting, rods loading/unloading, rotary and forwarding, and the jacks and winches all controlled by the hydraulic system, easy to manipulate and reduced the labour intensity and preparing time, improved the working efficiency and quality. Type of Chassis: Truck Mounted or Crawler Mounted optional.II. Technical Parameter600 Series Technical ParameterTechnical parameterUNITSL600SSL650SMax drilling depthM600650Drilling diametermm105-450Air pressureMpa1.6-6Air consumptionm³/min16-75Drill pipe lengthm6Drill pipe diametermm102Axial pressureT6Lifting forceT38Fast lifting speedm/min30Fast feeding speedm/min62Max rotary torqueNm11000/5500 or 13000/650012000/6000 or 14000/7000Max rotary speedr/min105/210Big auxiliary winch lifting forceT-Small auxiliary winch lifting forceT2.5Jacks strokem1.6Drilling efficiencym/h10-35Moving speedKm/h4.5Uphill angleSlope21°Weight T13.5Dimensionm6.3×2.25×2.65Working conditionUnconsolidated formation and rocksDrilling methodTop drive hydraulic rotary and pushing hammer or mud drillingMatched DTH hammerMedium and high air pressure seriesOptional accessoriesMud pump, centrifugal pump, generator, foam pumpIII. Machine Photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
