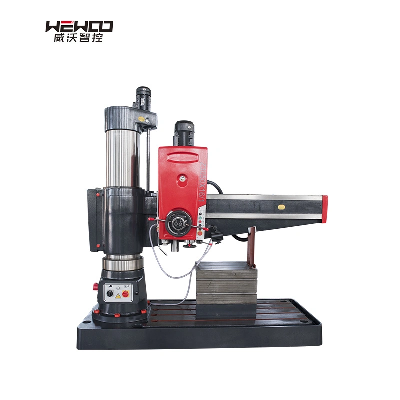

Radial Arm Drilling Machine Z3050 Drill Equipments

Main features1, Rocker arm drill is suitable for medium and large metal parts on drilling, reaming, reaming, counterfacing, and tapping, hydraulic rocker arm drill main functional measures to complete the handle, button and other operating parts will be gathered on the headstock.2, The shaking arm of the outer column is reversed ±180 around the inner column;3, Rocker arm lift along the outer column;4. Move the headstock along the rocker arm guide rail;5. Spindle box: Complete the transformation, feed and operation at all levels of the spindle. The spindle speed scale is 25-2000r/min, with a total of 16 levels, which can be completed by rotating the handwheel (spindle speed preselection button); Spindle feed scale 0.04-3.2mm/r There are 16 levels, which can be completed by rotating the handwheel (spindle feed preselection button).6, Rocker arm lifting and clamping: the rocker arm lifting is driven by the motor at the top of the column and driven by the screw nut to complete the lifting of the rocker arm. During the lifting nut is equipped with a safe nut to ensure that the rocker arm can not fall suddenly; The rocker arm clamping is hydraulically driven diamond block to complete the clamping, after clamping, diamond block self-locking; After the rocker arm is raised or lowered, the rocker arm is actively clamped and controlled by the electrical switch installed on the oil cylinder.7, Spindle box and column clamping: spindle box and column are hydraulic drive, diamond block clamping. The two moves can be carried out together or separately. The selection button is the knob on the headstock panel (the headstock column can be selected quickly), among which the center position is the clamp, the left is the column alone to loosen the clamp, the right is the main axle box alone to loosen the clamp, the move is completed button is the headstock column release button, the headstock column clamping button.Product DescriptionSpecificationsSpecificationUnitsZ3050×16Max. drilling diametermm50Distance between spindle axis and columnmm350-1600Distance spindle nose and work surface of basemm320-1220Rocker arm lifting distancemm580Rocker arm lifting speedm/s0.02Spindle travelmm315Spindle taperMorse5Range of spindle speedsr/min25-2000Number of spindle speedsstep16Range of spindle feedsmm/r0.04-3.20Number of spindle feedsstep16The maximum torque of the spindleN.M500Spindle maximum feed resistanceN18000Table sizemm630×500The spindle box of horizontal moving distancemm1250Spindle motor powerkw4Hydraulic clamping motor powerkw0.75Cooling pump motor powerkw0.09Arm lift motor powerkw1.5Machine weightkg3500Overall dimensionmm2500×1070×2840Detailed Photos   FAQ1. Technology support by providing operation?training videos?---->Professional after-sales service team.       We can Provide Technical support online service  and Machine operation Vedio     We can provide on-site  training and commissioning Vedio     We can Provide Spare parts replacement and repair service     Give reasonable offers with the best quality.2:How can I choose the most suitable machines ?----> Please tell me your specifications ,we can choose the best model for you , or             you can choose the exact model .     You can also send us the products drawing ,we will choose the most suitable machines for you .3. Can you customize the machine for the customer?---->Yes. We can, if you need customized services, please contact us4: What's your main products of your company?---->We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC          Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .5. What is the MOQ?---->We usually provide 1 set for customers to test.6.What is your payment method?---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)7. What is your trade terms?----> FOB, CFR and CIF all acceptable.8: Where is our factory located? How can I visit there?---->Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
