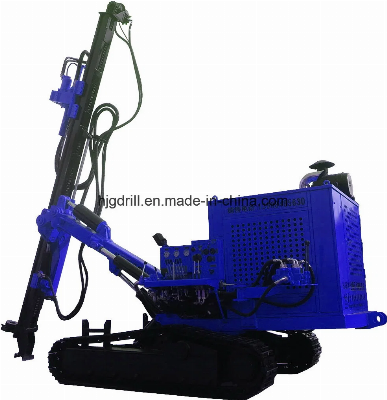

Hjg Blast Hole Drill Rig Rock Drilling Tools Hjg-B140

Blast Hole Drill Rig Model HJG-B140INTRODUCTION:HJG-B series open-air blast hole drilling rig is a combustion engine driven crawler-type hydraulic drilling rig developed by our company, adopting self-propelled hydraulic track chassis with favorable mobility and equipped with high-power hydraulic motor, heavy hydraulic drill boom and high air pressure DTH Hammer. The use of drilling rig HJG-B140 mainly covers strip mining, road construction and rock-drilling process in the field of water-power engineering. It is a down-the-hole drilling rig specially designed for open mine, stone pit and construction industry.HJG-B series open-air blast hole drilling rig adopts diesel engine. Hydraulic oil pump unit offers power to hydraulic motor moving, turn-around, propulsion and lifting, and angle orientation of oil cylinder, etc. When drill is working, only the down-the-hole hammer consumption of fuel is saved by 40% to 50%.  ADVANTAGES:1,All hydraulic control, low purchase costHoist & feed system and rotary head are both driven by hydraulic power with easily operating. Its drilling can use low or high pressure compressing air, saves 1.5 times air volume as contrasted with the drill by air-driven. It can reduces the total cost of drilling.2. High efficiency, energy saving.The drilling rig power is less than the drilling rig by air-driven,can save more than 10 liter in one working hour, supply more turning torque and feeding & hoisting power with hydraulic driven motor. It is better used for hammer of 90-165mm to smash and flake rock.3. Good stability.Succinct mechanical arm, decreasing the sliding frame joint, when drilling blast hole the drill can have better stability.4. Favorable agility and flexibility.The drilling rig is a combustion engine driven hydraulic crawler drilling rig, adopting self-propelled hydraulic track chassis and equipped with high-power hydraulic motor, can have better agility and performance through the floating joint of framework. 5. EngineCummins 100 hp engine special for industry, to drive hydraulic pump and motor which provide strong power for all actions of the machine.6. Rotary headHydraulic rotary motor supply strong power, maximum rotary torque can reach 4500NM, equipped with enforced absorber, eliminate the back force from the hammer effectively to protect the motor and speed reduction box.7. Hoist & feeding systemUsing strong linkage chain system, driven by hydraulic motor, supplying 15000N lifting force, it can rapidly feed and lift to save assistant time and improve the drilling efficiency.8. Control boardControl handle centralized control, easily operating, the operator can operate the drill at the side of the drill. It improves the safe factor.9. UndercarriageHigh-power hydraulic motor has great moving driving force and high grade-ability to pull the air compressor. It is operated flexibly and is convenient for working. The crawler undercarriage floats within the range of 15°tilting gauge, which is suitable for the construction in cragged field. The crawler which is used for project and machinery is firm and durable.10. Air filter and fuel tankTwo-stage air filter can filter over 90% of dusts in the air inflow and discharge them automatically with no cleaning, which can effectively reduce the abrasion of engine, prolong the lifetime, enhance the efficiency and be used in various severe working conditions.160 liter fuel tank ensures one working day supplying. PARAMETERS:ModelHJG-B140HJG-B165Hole diameter90~165mm140~254mmDrilling depth30m30mDrilling angle(Above horizontal) 0~90Adaptive rockf≥8Rotation torque3000Nm3400NmRotary speed0-72 rpmMax thrust30 kN40 kNFeed stroke3.5 m3.5mLifting capacity30 kN40 kNLifting speed20 m/min20 m/minHammer modelHD45/HD55HD65/HD85Drill rod dia.76mm,89mm89mm,114mm,127mmTravel speed2 km/h2 km/hGradeability26°25°Working pressure1.05-2.46 Mpa1.38-2.46 MpaAir consumption≥18 m³/min≥21 m³/minEngine power74 kW74 kWDimensions(LxWxH)4780x2700x2200mm4780x2700x2200mmGross weight7 T8 TWorking rig at the site in Chile:Our Workshop:  Frequently Asked Question:    1.Are you a manufacturer or a trade company?We are a manufacturer of rock drilling equipments and pneumatic tools in China over 17 years. 2.How many workers in your factory?We have more than 700 employees, including factory workers,sales people,QC ,R&D and management team. 3.Where are your company?We are located in Changsha city,Hunan province,where our first chairman Mao was born.1 and half hours by car from the nearest Huanghua international airport,2 and half hours by CHR express from Guangzhou nan station to Changsha city. 4.Why choose us?1)We have more than 17 years of researching,developing, manufacturing  and exporting high quality rock drilling equipments and penumatic tools to the global market.2)High quality compatible with Sandvik, Atlas Copco, etc3)Unbeatable price4)Excellent service. 5.Which port do you shipping from?We usually ship container from Shanghai port.Guangzhou port is available too. 6.
