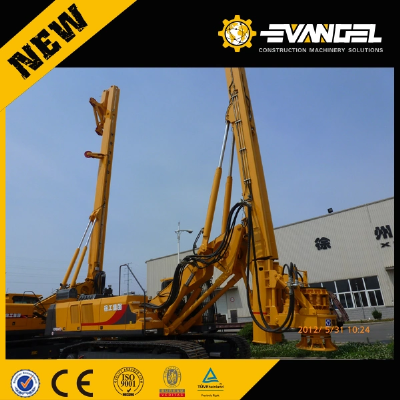

China Brand New Small Rotary Pile Drilling Rigs Xr150d

China Brand New small rotary pile drilling rigs XR150D 1. Original Imported Cummins Supercharged Engine (Rated power: 126kw) 2. Max. Drilling Diameter: 1300mm 3. Max. Drilling depth: 48m, Max torque: 150KN. M 4. Imported hydraulic, electrical appliance 5. Telescopic crawler chassis 6. Friction type drill rod φ 355 (length: 48m, 5 section) 7. Drill Head φ 1000 mm (Diameter: 1000mm) 8. Operating Weight: 47, 000kg 9. Dimension(L*W*H): 7122*4100*17250mm (Working Condition) 10. Dimension(L*W*H): 12300*3100*3060mm (Transportation Condition) 11. Casing (φ 1.5m diameter, 3m length, 10mm thickness steel). Load sensing hydraulic system The colorful display makes the operation simple and flexible, which features automatic monitoring on the boring depth and verticality as well as the automatic trouble alarming system. Utmost power control system, automatic slewing orientation system. Self-produced chassis with telescopic tracks, H-shape frame. The whole machine is applicable to line-haul transportation without dismantling the drilling rig. GPS system, remote analysis on machine condition and data, real time remote control and trouble-shooting. Model  XR150DEngineModel CUMMINS 6BTA5.9--C173 Rated powerKW126Power headMax. output torquekN@ m150Revr/min6-28Max. bore diametermm1500Max. bore depthmstandard collocation 56(5 section)Pressurized cylinderMax. pressureKN114Max. lift forceKN148Max. strokem3.5Main winchMax. lift forceKN155Max. winch speedm/min≥ 65Auxiliary winchMax. lift forceKN60Max. winch speedm/min≥ 70Angle of drill mastside/front/back ± 3° /5° /15°ChassisMax. travel speedKM/h2.0Max. gradeability%40Min. ground clearancemm352Track widthmm800Space between tracksmm3050-4100Hydraulic systemWork pressureMpa30Work weightt43.5DimensionWork statusmm7122*4100*17250Transportation statusmm(with drill mast)13700× 3050× 352012300*3100*3060       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
