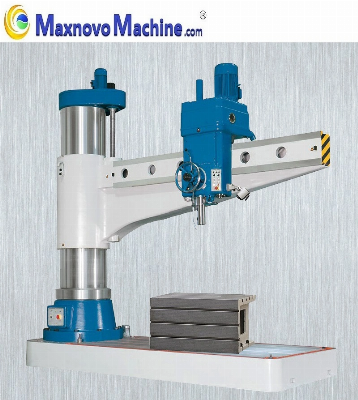

Hydraulic 100mm Radial Arm Drilling Machine From Maxnovo R100

MM-R100 - Hydraulic 100mm Radial Arm Drilling Machine From Maxnovo - MAXNOVO MACHINEHydraulic 100mm Radial Arm Drilling Machine for Metalworking (MM-R100) This kind of MM-R100 is Heavy Duty Hydraulic Clamp Radial Drilling Machine which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification. Such radial drill press machine features Max. Drilling Capacity Diameter is up to 100mm, Throat is up to 3150 mm, Heavy-duty Large Rigid Column, High Torsion-Resistant Boom, Powerful 15KW Main Motor, Gross Weight is up 20 Ton, Solid Construction and convenient user friendliness. It is ideal for versatile use in the Single Part and Series Production.    Product Description Heavy Duty Hydraulic Solid Radial Drilling Machine Perfect in Every Detail, Powerful, Rigid and Easy to Handle Main  Feature :   Convincing arguments : Quality, Efficiency and Price  --Max. Drilling Capacity Diameter Ø 100 mm and Heavy Solid Column --Base, column, boom and gear head are made of premium high-quality cast --Major design features include a large column and a highly torsion-resistant boom --Boom height adjustment via a powerful motorized drive and vertical spindle --The boom lifting gears run in an oil-bath for maximum reliability and minimum wear --A large throat and high boring capacities are supported by a very rigid structural design, without compromising  the ease of handling and smoothness of operation --The drill head features a rigid design with motorized or manual movement --Spindle speed and feed velocity are hydraulically controlled for easy and safety operation --Drill spindle driven by multi-disk reversing clutch to avoid excessive load peak easy operation--Independent hydraulic clamping of head, column and boom --Drill head & column can clamped/released together or separately and controlled via push button--Boom and column are oiled through a reliable central lubrication system --Drill head and column can clamped / released together or separately, controlled via push button --Boom and column are oiled through a reliable central lubrication system --Advanced column swivel design with optimized clamping features rigidity and clamping offset --Main spindle runs on precision bearings and features an automatic spindle brake --Oversize base plate, ideal for processing of large work-pieces --All gear parts are lubricated reliably via oil pump --Gears hardened precision-ground chrome-nickel steel gears for smooth low-noise operation--The drill head moves on hardened and ground guide-ways --All operator controls placed within reach for convenient and practical handling and quick learning --Swivel axis and travel axis extremely smooth operation make everyday production work easier--Powerful coolant system with coolant reservoir integrated into the machine foot --Certificate of Original (CO, FORM A, FORM E, FORM F)   Product Parameters Technical Data :  Product  Name :Heavy duty Hydraulic 100mm Radial Drilling Machine Product  Item :MM-R100Clamping Type : Hydraulic Max. Drilling Capacity  (in steel) : Ø 100 mm Max. Tapping Capacity  (in cast iron) : M 80 Max. Tapping Capacity  (in steel) :M 70 Drilling Depth (max.): 500 mm Working  Area Working Table Size  (L X W X H) : 1250 X 800 X 560 mm  Distance Spindle-to-Column Surface (Throat) :570 - 3150 mm Distance Spindle nose-to-table Surface : 700 - 2500 mm Travel of Spindle Headstock :  (Drill Head Horizontal Travel)  2590 mm Arm Stroke Vertically :  (Vertical Travel of Arm on Column ) 1300 mm Spindle Travel : 500 mm Maximum Torque of Spindle :  2500 NmColumn  Diameter : Ø 600 mm Rotation Angle of Rocker Arm : ± 180 degree Headstock Spindle  Speed  Range : 8 - 1000 RPM Spindle  Speed  Steps : 22 steps Spindle  Mount : MT6Feed Spindle  Feed  Range : 0.06 - 3.2 mm / rev Spindle  Feed  Steps : 16 steps Drive  Capacity Main  Motor : 15000 W Lifting  Motor : 3000 W Coolant  Motor : 90 W Connecting Voltage : Three Phase 400V Measures and Weights  Packing  Type : Two unit of Export Type Wooden Case  Machine Dimensions : 4780 X 1630 X 4720 mm  (L X W X H) Packing  Size : 5280 X 1680 X 2620 mm  (L X W X H) 4800 X 1950 X 2180 mm  (L X W X H) Gross  Weight : 20800 KGS Standard Accessory : Coolant system, Working Table, Work Lamp, Main Motor, Lifting Motor, Tools and Toolbox   Our Advantages  Guarantee of Quality  The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.                                                              Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.They are responsible for the dimensional accuracy of the components as well as their control and the quality of the ma
