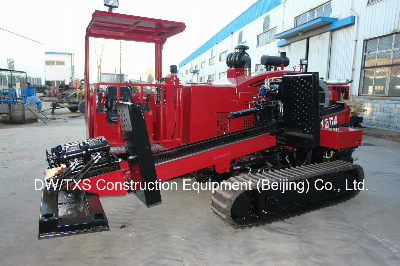

Horizontal Directional Drilling Machine for Pipelaying (DDW-1204)

Key features: Undercarriage with rubber tracks Rack-pinion thrust-pullback structure system, high speed piston motors and reducers drive the carriage. Low speed / high torque motors drive rotary gear boxWrench with buffer springs, Decrease the harm to the wrench as operation error happens Multi options: Automated pipe loader (5 X 10, 50 pipes in the box); automated anchoring system   ItemsSpecificationEngine gross power rating/rated speed82KW(110Hp)/2200 r/minMaximum spindle torque4000 NmMaximum spindle speed150 r/minMaximum thrust force:120KNMaximum pullback force:120KNCarriage thrust travel speed/Carriage pullback travel speed48,24,12 m/minPipe size (Diameter/Length)60mm/2000 mmGround travel speed(forward/reverse):3Km/hEntry angle13-20°Mud pump fluid flow / fluid pressure:200L/min /10MPaAutomated pipe loader50 pieces of pipes in the feed boxOverall dimensions(Length X width X height):4.3x 2.15x 2.20m  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
