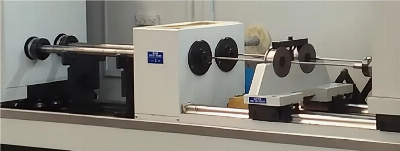

Single Axis Series CNC Deep Hole Drilling Machine (gun drilling)

Single axis series CNC deep hole drilling machine (gun drilling)Model number : The machine adopts gun drilling processing technology, KND numerical control system; Multi-spindle structure can process multiple workpieces at the same time; Blind hole, through hole, step hole and eccentric hole can be processed; Widely used in mold, engineering machinery, hydraulic valve body, coal machine, automobile, crankshaft and other industries.Machine tool characteristics:1:Using gun drilling processing technology, through one drilling can achieve the general need to drill, reaming, reaming process to certify the machining accuracy and surface roughness.2:Automatic chip removal in the process of processing, no need to withdraw the tool chip removal.3:Before drilling, there is no need to process the guide hole on the workpiece, saving the process.4:Using numerical control system, simple operation, high degree of automation, the operator only need to install the workpiece, press the start key, the machine can automatically complete the processing according to the program.5:Using numerical control system, simple operation, high degree of automation, the operator only need to install the workpiece, bed body, box, table and other basic parts using high quality cast iron.6:Using numerical control system, simple operation, high degree of automation, the operator only need to install the workpiece, fully closed protection, prevent cutting oil splash, safety, environmental protection, fully consider the workpiece and tool loading and unloading convenience7:Using numerical control system, simple operation, high degree of automation, the operator only need to install the workpiece, equipped with a special cooling system, for deep hole processing to provide high pressure large flow high clean cutting fluid.8:The use of numerical control system, simple operation, high degree of automation, the operator only need to install the workpiece, the rotation of the tool is driven by the servo motor, the feed of the tool through the servo motor drive ball screw to achieve, the feed and speed of the tool stepless adjustable.9:Tool feed guide adopts rolling linear guide.10:Bed body oil return groove inclined design, no oil storage.11:On the CNC system operation station, the cooling system pressure adjustment knob and flow adjustment panel are installed.12:Numerical control system: Beijing KNDStandard accessories:Chain plate chip removal machine, hydraulic station, servo main motor drill pipe box, constant speed headbox, Z-axis linear guide rail, full protection of the main engine, variable frequency pump group for tool oil supply, paper bag filter, oil cooler, drill pipe support, workpiece bracket.Purchase accessories:Auxiliary tools (including guide sleeve, guide frame support sleeve assembly, drill pipe support sleeve assembly), gun drilling tools, sharpening machines, cutting oil .Note: due to continuous improvement and development, design and specification changes without notice./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
