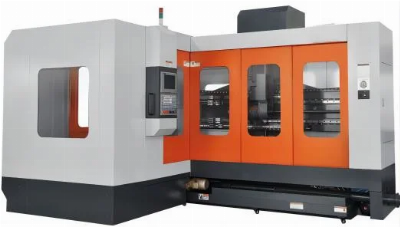

Zhk2303-Three Coordinate Series CNC Deep Hole Gun Drilling Machine

Three-coordinate series CNC deep-hole drilling Machine (gun drilling)Three coordinate series CNC deep hole gun drilling machineThis machine is suitable for processing coordinate holes on parts. The table moves laterally and the tool moves up and down and lengthwise. This machine tool is an efficient, high precision, high automation CNC deep hole drilling machine; Using gun drilling processing technology, has the characteristics of high machining precision; Using digital servo control system, can realize single action and automatic cycle processing function. Suitable for small batch and large batch processing. This machine can process blind hole, through hole, step hole and eccentric hole. This machine tool is widely used in mould, engineering machinery, hydraulic valve body, coal machine, automobile, crankshaft and other industries.Machine tool characteristics:1:Using gun drilling processing technology, through one drilling can reach the general need to drill, reaming, reaming process to ensure the processing accuracy and surface roughness.2:Automatic chip removal in the process of processing, no need to withdraw the tool chip removal.3:Before drilling, there is no need to process the guide hole on the workpiece, saving the process.4:Using numerical control system, simple operation, high degree of automation, the operator only need to install the workpiece, press the start key, the machine can automatically complete the processing according to the program.5:Bed body, box, table and other basic parts are cast with high quality cast iron, and aging treatment.6:Three-coordinate structure: horizontal movement of the workbench (X), vertical lifting tool (Y).7:The rotation of the tool is driven by the servo main motor. The feed of the tool is realized by the servo motor driven by the ball screw. The feed and speed of the tool are stepless adjustable.8:It is equipped with special cooling system, which is installed with oil cooler, chain plate chip removal machine, filter system, frequency conversion pump group.9:The guide rails for X axis, Y axis and Z axis are linear rolling guides.10:X axis, Y axis adopts servo motor servo reducer drive ball screw structure.11:With automatic chip removal machine, automatic chip removal; Pre-discharge chip, convenient for the operator to observe the chip breaking and chip removal situation.12:The machine has torque protection, cooling liquid level protection, cooling pressure protection, stroke protection of each shaft, etc.Standard accessories:Hydraulic station, servo main motor drill pipe box, linear guide rail, full protection of the main engine, variable frequency pump group for tool oil supply, T-groove table, paper bag filter, chain plate chip removal machine, oil cooler, drill pipe support, a set of instructions, a set of operating tools, KND numerical control system.Purchase accessories:Auxiliary tools (including guide sleeve, guide frame support sleeve assembly, drill pipe support sleeve assembly) gun drill tools, tool sharpener, cutting oil Note: Due to continuous improvement and development, design and specification changes without notice.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
