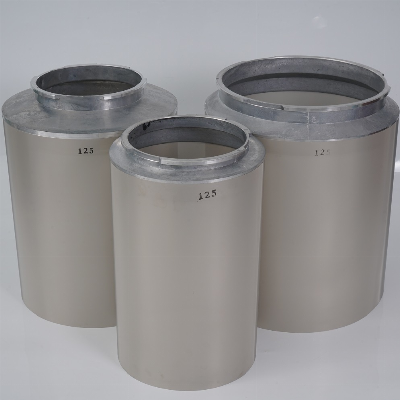

Rotary Nickel Screen Mesh

  Hanze Ltd provide Rotary Nickel Screen mesh ranges as follow: Mesh Count:25,30,40,50,60,70,80,100,125,135,155,165,up to 195 mesh count. Screen Repeat:640,688,725,819/820,914,1018,1206,1450,1680mm Length:1000 mm to 3500 mm. which are of high quality and can replace the similar products as well from Europe.All other specifications could be customized.   Standard Nickel ScreenRepeat(mm) 530/640/688/725/819/914/1018 Length(mm) 1410-3500 MESH COUNTTHICKNESS(um)OPEN AREA(%)DIAMETER(um) 25 160-165 30-32 720 40 145-150 28-30 318 60 115-120 18-20 161 70 110-115 16-18 131 80 110-155 16-18 105 100 105-115 15-17 74 105 105-115 15-17 94 125 100-105 14-16 79 125V 100-105 14-16 79 135 100-105 13-15 72 135V 100-105 13-15 72 155 100-105 12-13 60 165 100-105 12-13 71 All"V type screen, the hole arrangement angle is 45°C, especially suitable for geometry printing, eg-square and line, all screen can be repeatedly used for 5-7 times.   Product advantage:More tough and tensile, safely operation and multiple useGood symmetrical, good conglutination function of photosensitive medicamentOrderliness and accurate screen caves, good dye output and osmotic functionHigher strength, longer life screenNickel screen for screen printing machinePackaging Detail:packaged in plywood case or carton boxDelivery Detail:Within 10-15 days   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
