Brand New Water Well Mounted Rig Used Borehole Drilling

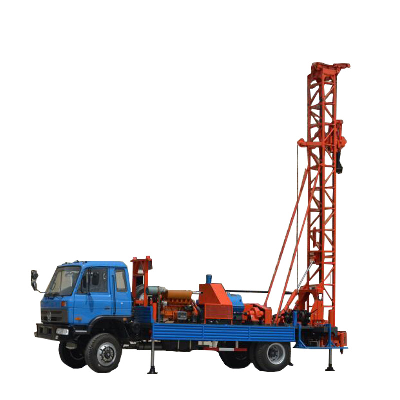

  Product Description○The drilling rig can use air DTH Hammer drilling and mud drilling.○It's a hydraulicrotary drilling rig with Normaland Reverse Circulation for both Mud and Air. It is equipped with BW600/30 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.○Mechanical power head.  ApplicationIt is widely used in Industrial & Agricultural Water Conservancy Engineering.It can drill rock well, monitoring well and exploration well, especially apply to drilling geothermal heating hole.It also can satisfy the project demands of engineering foundation reinforcement, pipe-following drilling on loose gravel stratum, cornerstone drilling and etc.  Main technical parametersDrilling ParameterHole diameter:120--1500(mm)Hole depth:400(m)Run Of Rod:3,4(m)Drill rod diameter:φ73 φ89 φ95 φ133(mm)Drilling Technology:Normaland Reverse Circulation for both Mud and AirDown-The-Hole hammers:Middle-High-Pressure AirPerformance parameterDrill Head Inside Diameter:φ80 φ120Drill Head lifting Force(kN):130Drill Head Spin Speed:A(Forward:20-33-73,Reverse:13-23-47r/min)B(Forward:41-66-146,Reverse:26-43-94r/min)B(Forward:36-58-127,Reverse:23-37-80r/min)Shape ParametersDimensions:(L-W-H) Working conditions 9600×2950×7900(mm)Transport status:(L-W-H) 10200×2470×3300(mm)Supporting Form:Hydraulic UnitMast Up-Down:Hydraulic UnitRig mass:12500(Kg)Chassis:Dongfeng EQ 1141/JiefangCA1127 (four-wheel drive)Power Unit:Diesel EnginePower:84(kW)Pump:BW600/30 Mud PumpFlow(m³/h):720 513 335Pressure(MP):3 4 5Main Hoist Lifting Force:25(kN)Auxiliary Hoist Lifting Force:8(kN)Notes: Drill head spin speed can be selected, A is normalDetailed PhotosThe truck chassis adopts the 6X4 special crane chassis and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.The power of drilling rig comes from a diesel engine,80kw engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.   Related productwe can supply full set of drilling tools:drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit etc.Drilling equipment:Air compresoor and Mud pump.Drilling rig:Water well drilling rig/HDD drilling rig/Core drilling rig/RC drilling rig/Rock drilling rig etc.Company Profile     Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and engineers that enable us to complete all the assigned projects successfully as per clients; requirements.   Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.  FAQQ1.Are your products qualified?Yes, our products all have gained CE certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.Q2.Are you trading company or manufacturer?We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 70 countries of Asia, South America, Africa, and get a good reputation in the world.Q3.Do you have after service?Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
