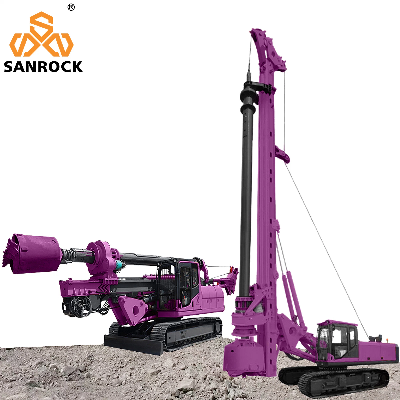

Hydraulic Rotary Drilling Machine 298kw Diesel Engine Borehole Drilling Rig Equipment

SRP5360 Rotary Drilling RigThe whole machine is compact in shape and flexible in maneuvering. It is especially suitable for various special, narrow, and low-space industries and civil construction sites.https://sanrock.en.made-in-china.com/  Product Description   Produce Name: Rotary Drilling RigSRP5360 hydraulic rotary drilling machineEngineModelQSZ13-C400-30Rated powerKW298Rotary DriveMax.output torqueKN.m360Rotary speedr/min5-22Max.Drilling Diametermm2500Max.Drilling Depth  m90Main WinchRated TensionKN320Max.single-rope speedm/min70Auxiliary WinchRated TensionKN100Max.single-rope speedm/min55Lateral/forward/backward inclination of mast°±5/5/15Pull-Down CylinderMax.pull-down piston pushKN240Max.pull-down piston pullKN250Maximum strokemm6000ChassisMax.traveling speedkm/h1.4Min.ground claerancemm440Crawler board widthmm800System Working Pressure   MPa35Overall Drilling Weight   t88DimensionWorking Conditionmm11000*4800*24500Transportation Conditionmm17300*3500*3800Feature:1. Special hydraulic telescopic crawler chassis, large-diameter slewing bearing, super stability and convenient transportation.2.The engine  with strong power, whole machine is matched reasonably, and the key components adopt stable, reliable and high-performance .   hydraulic motors,  electrical components, etc.3. The rear single-row rope main winch structure greatly extends the life of the wire rope and lowers the use cost.4.A variety of drill pipe configurations are available, which can meet the construction of large holes and deep piles in hard ground.5. High-definition LCD screen, easy and flexible operation, automatic detection of drilling depth and mast verticality, automatic fault alarm.6. The hydraulic system adopts load-sensitive control technology, and is equipped with limited oil and power cutoff functions to make the hydraulic system more efficient and more energy-saving.Company Profile Certifications Packaging & ShippingFAQ1.what can you buy from us?DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,underground jumbo drill rig ,screw air compressor,DTH hammer,drill rod,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.2.How can I make payment?A:You can pay by credit card, TT, Western Union, LC etc.3. How is the shipment? How long dose it take?A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.4.How is your quality control?A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
