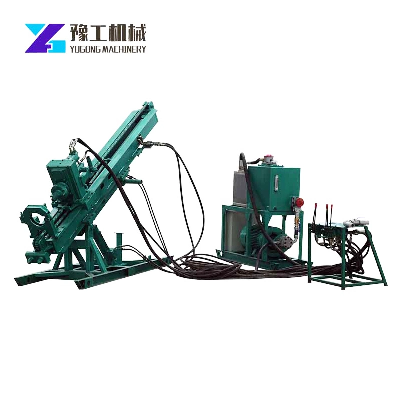

hammer rotary soil auger anchor rig drilling equipmentProduction Description Anchor drilling machine mainly used in geological hazard prevention and control of the landslide and thedisplacement of anchorage and control structures of dangerous rock mass high slope rock mass ofanchorage engineering, such as urban can also be used for deep foundation pit, the foundation reinforcementoles, blasting holes and drain hole drilling. With simple structure, light weight, disintegration of relocationransportation convenience; Adopts full hydraulic pressure control, convenient operation; A second gear rotaryspeed and torque, can be selected according to actual needs, strong adaptability.Technical Parameter The whole machine parametersModelYGMG-40YGMG-50YGMG-70Drill hole depth10-60m25-70m 35-80mHole diameter90-180mm90-165mm90-200mmDrilling rod spec Φ76mm*1800mmФ76 *1500mm, Ф89*1500mmФ76*1500mm, Ф89*1500mmHole angle0-90°0-90°Φ42mm,50mm,60mmOutput ratory speed 90rpm70rpm70rpmRated output torque 2400N.m2500N.m3900N.mPower head max stroke 1800mm1800mm1800mmMax lifting force 25KN30KN30KNPower head max feeding force 20KN25KN25KNHydraulic system rated pressure 16Mpa17-18Mpa 17-18Mpa Rotary electric power 4 pole 7.5kwhydraulic hydraulic Hydraulic pump electric power 4kw22kw22kwVoltage 380V380V380VWeight 1000kg1260kg 1460kg Hydraulic pump dimension 640*600*580mm1850*780*1360mm1850*810*1280mmdimension 2800*800*1400mm3000*780*1360mm3100*1000*1500mmFeature 1.Three phase asynchronous electric motor and double connect gear oil pump provide power for drilling rig2.It adopts hydro-cylinder feeding pattern with compact structure, big lifting force and good stability3.The radiator can reduce the oil temperature efficiently to avoid hydraulic oil from changing to low viscosity or destroyed because of the very high temperature of oil.4.The up and down hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from different angles. Welcome to send your inquiry for further .Before sending your inquiry , please confirm the following information, Then advise us your answer,so as to offer you suitbale machine and details.1. The application (what's your drilling project?)2. The drilling hole depth and diameter?3. The drilling object ? (Soil, Rock ....) Package Anchor drilling rig machine use Standard export wooden case or as your requirement.Company Information Henan Yugong Machinery Co., Ltd., located in Erqi District of Zhengzhou City, Henan Province, is a largeengineering machinery manufacturing enterprise which focuses on research and development, productionand sales of drilling equipment in mining, tunnel, road and bridge construction. We can produce sets ofconstruction system equipment such as drilling machine, road construction machine and demolition cuttingmachine, etc. Technical design, material purchasing, precise manufacturing and strict quality inspection areall processed according to top standard. "Quality First, Reputation First, Be Innovative, Be Excellent." hasalways been our purpose. We warmly welcome your corporation from all fields and build great future for us all.Purchase Assurance High quality raw material suppliers provide us stable and excellent performance machines; skilled and responsible engineers, technicians and workers keep our production line proceed well-organized; we'lltest running every machine before delivery, to make sure it works well in clients' construction sites; allmachines have one--year warranty and lifelong maintenance, our sales manager provide elaborate machine-related consulting service and technical assistance during pre and after-sales, to make sureclients are proficient in operating our machines.Before sending your inquiry , please confirm the following information, Then advise us your answer,so as to offer you suitbale machine and details.1. The application (what's your drilling project?)2. The drilling hole depth and diameter?3. The drilling object ? (Soil, Rock ....) Or save my Business Card Contact Us /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(
