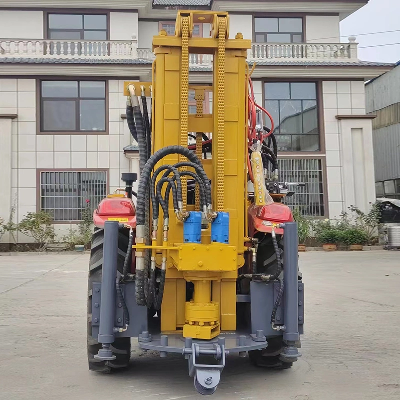

Borehole Tractor Crawler Drilling Rig Water Well Drilling Equipment

Product DescriptionPortable Anchor Air Compressor Wheeled Car Water Well Borehole Drilling RigYG series hydraulic water well drilling rig is mainly used for water well / borehole / wellhole /, geological generalinvestigation and exploration/ drillinng coring ,kinds of hole in concrete structure,road and tall buildingfoundation exploration,river levees,subgrade grouting hole drilling and direct grouting,civil wells and earthtemperature central air conditioner,etc.Detailed Photos1.Engine:Feed by hydraulic cylinder,the drilling efficiency is higher and it can save labor.2.Drill rod:53x59 drilling rod adopted,high rigidity and strong delivery torque.3.Spindle:Vertical spindle are fixed by four groups of bearing to ensure that the rotary machine is rigid    enough for gravel layer and other complex geoloical conditions.4.Mud pump:Equip mud pump with flow 160L/min,save cost and also make the structure compact.5.Concentrated handle, small footprint,light weight, strong decomposition, easy to move.The whole machine parametersModelYG-130Y/130YYYG-180Y/180YYYG-200Y/200YYDrill hole depth130m180m200mMaximum opening diameter220mm220mm325mmFinal hole diameter75mm75mm75mmDrill pipe diameterΦ42mm,50mm,60mmΦ42mm,50mm,60mmΦ42mm,50mm,60mmBorehole inclination90°- 75°90°- 75°90°- 75°Power(diesel engine)13.2/2200kw/r/min13.2/2200kw/r/min15/2200kw/r/minMotor22KW36kw42kwVertical shaftVertical spindle speed142,285,570r/min130,480,730,1045r/min130,480,730,1045r/miVertical stroke450mm450mm450mmHoistSingle line lifting capacity20KN21KN25KNSingle rope lifting speed0.41-1.64m/s0.35-2.23m/s0.12-0.95m/sDrum diameterΦ140mmΦ140mmΦ140mmDiameter of wire ropeΦ9.3mmΦ9.3mmΦ13mmWire rope capacity27m27m35mMud pumpModelBW160BW160BW250Flow160L/min160L/min250L/minMaximum pressure12Mpa12Mpa17MpaReciprocating frequency93times/min93times/min93times/minWater inlet diameterΦ51mmΦ51mmΦ75mmWater to exit diameterΦ32mmΦ32mmΦ50mmDrilling TowerRated load18Ton18Ton18TonEffective height6.5m7.5m9mTower leg spec.Φ73mmΦ73mmΦ73mmPackaging & ShippingCompany Profile   CertificationsFAQ1. Q: Are you trading company or manufacturer? A: We are original equipment manufacturer. 2. Q: How long is your delivery time? A: It is according to the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines. 3. Q: Do you provide samples? Is it free or extra? A: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight. 4. Q: What is your terms of payment? A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. Payment=USD 5000, 30% T/T in advance, balance before shipment.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
