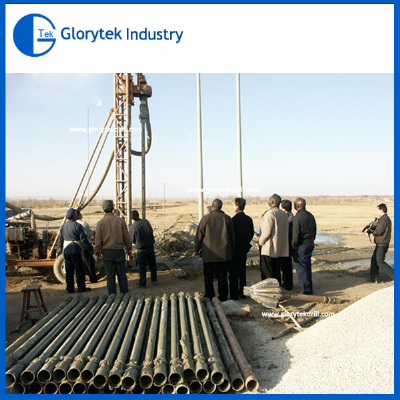

Portable Bore Hole Drill/Drilling Rig Drilling Equipment

portable bore hole drill rig   Advantage    1. Move easily & good mobility  2. Simple operation & high efficiency  3. Commercial Price.   Application   1. Drilling wells for urban and rural life 2. Drilling wells for agricultural irrigation and industries 3. Drilling for geotechnical survey 4. Drilling construction engineering holes 5. Drilling geothermal pump wells   Technical Parameter      ItemGL-II Trailer Mounted DrillHole Diameter (mm):90-1200Hole Depth (m):150Run of Rod (m):3Drill Rod Diameter (mm):φ60,φ73,φ89,φ95,φ133Drill Head Inside Diameter (mm):φ35,φ60,φ81,φ120Rig Mass (kg):3400Drilling Technology:Normaland Reverse Circulation for Both Mud and AirDown-The-Hole Hammers:Middle-High-Pressure AirDrill Head Lifting Speed (m/s):0.25 0.15Drill Head Lifting Force(kN):55.4 94.55Feed Thrust (kN):0-15Drill Head Spin Speed (r/min) :A(Forward:13-22-48, Reverse:10-17-36)B(Forward: 48-84-184, Reverse: 37-65-142)Main Hoist Lifting Force (kN):18.54Pump:LBN-20Normaland Reverse Circulation Pump GroupFlow (m3/h):80Power Unit:Diesel EnginePower(Kw):40Mast Up and Down:Mechanical typeChassis:Trailer with two wheelsDimensions(mm): (L-W-H)Working Conditions: 4910*2020*6650Transport status: 6700*2020*2750     Related ProductsCompany Profile Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc. FAQQ: How can we choose a suitable water well drill rig?A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site. Q: Are you a factory or a trading company ?A: We are an integrated corporation specialized in manufacturing and exporting.Q: What is your payment terms? A: We can accept T/T,L/C. Q:.What is your MOQ? How long is the delivery time? A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days. Q:. How long is the warranty? A: The guarantee period for mainframe is one year (excluding the quick wear parts). Q: Can we print my Logo on the products? A: Yes, we can. We support OEM . /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
