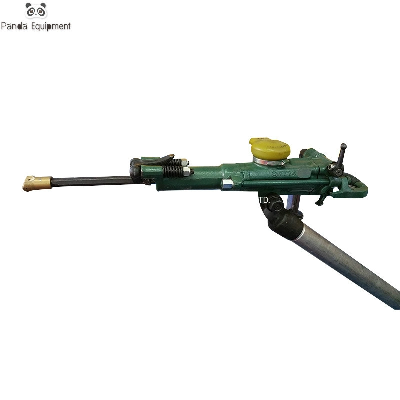

Yt24, Yt27, Yt28, Yt29A Pneumatic Air Leg Hand Held Rock Drill

Product Description:Air leg rock drill is rock drilling equipment with high high impact energy, and lower air comsumption,it is widely fitting for coal mine, railway traffic, water conservancy and so on.Panda Pneumatic Rock Drill have water flushing, gun bar rotation and the pusher leg control is placed at the back head of the rock drill. An in-line lubricator is included in the delivery of each rock drill. together with the appropriate pusher leg.Advantage:1). save energy and high efficiency2). strong impact energy3). low vibration4). easy handling5). low noise6). wet drilling7). easy cleaning air /water holes8). spare parts easily purchasingSpecification:TYPEYT24YT27YT28WEIGHT(KG)242626SHANK SIZE(MM)22*10822*10822*108CYLINDER DIA(MM)708080PISTON STROKE(MM)706060WORKING PRESSURE(Mpa)0.4~0.50.4~0.50.4~0.5IMPACT FREQUENCY(Hz)343636AIR CONSUMPTION (L/S)558575AIR PIPE INNER DIA(MM)192525ROCK DRILL HOLE DIA(MM)30~4530~4530~45ROCK DRILL HOLE DEPTH(M)666FAQ:Q1: Can I have a sample for testing?A:Samples are still to be paid but discounted price can be provided. Q2: Do you have the inspection procedures?A:100% strict inspection and testing for every order before packing.Q3: How can i get the after sale services?A:Free replacement will provide once the problems casued by our product quality.Q4: Can I have a visit to your factory before the order? A: Sure, welcome, here is our address: Yantai, Shandong. CONTACT:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
