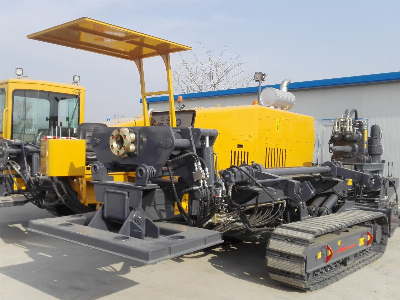

50 Ton 45 Ton Xz500 New Drilling Rig Price Xz450plus

50 ton 45 ton XZ500 new Drilling Rig Price XZ450PLUSFeature• Hydraulic system: Adopt many advanced control techniques, such as closed energy-efficient circuit, hydraulic pilot control, electrohydraulic proportion control, etc. • Rotation: It is driven by both the motor and the reducer with two gears to control the speed.• Feed/retract: Pull or push with the gear rack. There are two gears to control the speed, which has high working efficiency.• Cab: The single cab with air conditioning makes the operation easy and comfortable.• Engine: The turbocharging engine has large power reserve, guaranteeing the drilling power demand.•Drill stand: The high-intensity drill stand is fit for the 4.5m drill rod. The drill stand can slide, which facilitates the angle adjustment.• Drill rod holder: The movable holder and truck mounted crane make the drill installment and dismantlement efficient and labor-saving.• Track: The self-propelled steel tracks move and turn conveniently. It is driven by wire, and the speed can be shifted between high speed and low speed.• Monitoring and protection: The engine, hydraulic pressure, filtration monitoring and alarming can effectively protect the machine safety.ParametersModelXZ500EngineCUMMINSRated power194kWPush-pullRack and pinionMax.pullback/thrusting500/500kNSpindle torque(max)18000N.mSpindle speed0~108r/minTravelling speed of power head20m/minBackreaming diameterΦ1000mmPipe length(single)4.5mPipe diameterΦ89mmEntry angle10-20°Mud flow ratw(max)600L/minMud pressure(max)100barOverall weight18000kgDimension(LxWxH)9300x2750x2930mmPictureOur companyWe, Newindu E-Commerce (Shanghai) Co., Ltd, are professional in construction machinery for nearlly 10 years,exporting with good quality and low price, having excavator,truck crane,bulldozer,wheel loader,motor grader,drilling rig,dump truck,road roller,forklift,reach stacker,and also including the spare parts,etc.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
