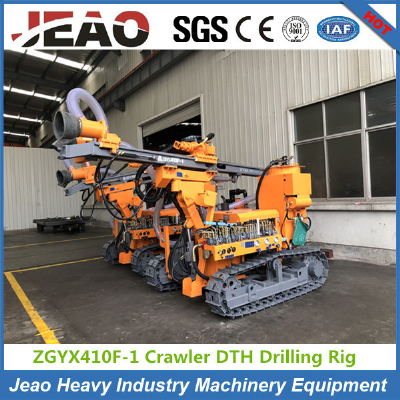

Crawler Diesel Blasting Hole Drilling Rig Equipment for Mining

ZGYX-412/412-1 Crawler Diesel Blasting Hole Drilling Rig Equipment for MiningApplication :Crawler Down the Hole drilling rig ,for open pit mining , quarries and construction work sites, equipp with dry dust collector,more environment friendly and energy saving Main Features1)ZGYX-412/412-1 drill rig upgrades the operation platform, tramming components, hydraulic system, feed beam &rotary head from the original 410F to optimize the functional capability of the drill rig. 2) Piston tramming motor great increases the work life of tramming mechanism. 3) Upgraded operation platform can be controlled by one operator instead of two, to increase the work efficiency while lowering drilling cost. Specification of Crawler Diesel Blasting Hole Drilling Rig Equipment for Mining:  Rock rigidityF=6-20Diameter of hole Φ90-110mmOptium drilling depth20mWalk speed2.5km/hGradeability30°Rotary speed70-120 rpm/minRotation torque                1650N.mLift power15 KNFeed wayoil cylinder-chainFeed distance                 2000mmCarriage Compensation900mmWorking pressure5-15barAir consumption7-12m3/minPower59kwDimension4900x2000x2200mmWeight3800kg  Model NoDiesel ModelDiesel PowerZGYX-412Xichai 4DW91-50GBG3U37.5KwZGYX-412-1Yuchai YC4DK8059Kw Dust collection systemas standard equipment The Macthing Diesel Screw Air Compressor:  Model NoF.A.D(m3/min)Pressure(Bar)PowerWeight110SCY-1012.510110Kw2450110SCY-14.51014.5110Kw2450kg  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
