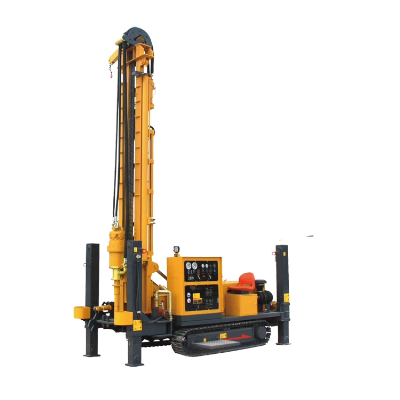

Rig Machine Xsl6/320 600m Water Well Offshore Drilling Rig

Factory Sale XSL5/260 Water Well Drilling Rig price for sale XSC(L) series deep(water) well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability. Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitationor salvage work.   The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.  Technical FeaturesParameter  XSL6/320Drilling  capabilityDrilling depthm600( Ø89)Max. diameter of work floormm450Feeding systemMax. lifting capacitykN320Max. feeding capacitykN100Max. lifting speedm/m in25Max. feeding speedm/m in36Strokemm5000Top driveMax.torqueN • m13400Speedr/min0-150I.Dmm76Floating distancemm70Max. tilting angleo/Deck engineType CMINS  6BTAA5.9-C180Rated powerkW132Tool winchHoisting capacitykN30Max. speedm/m in45Breakout deviceMax. breakout torqueN • m25000Vise clamping rangemmCustomizedMud pumpMax. flowL/min/Max. pressureMpa/Foam pumpRate of flowL/min/Rated pressureMpa/Mud pipeInternal diametermm55PressureMpa15ChassisDrive mode  Crawler chassisEngine type /Rated powerkW/Highest speedkm/h2.5Max. climbing gradient%45Working dimensionmm4500x2300x8500Transportation dimensionmm8500x2300x3300Weightt13Details ImagesWhy Choose Us/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
