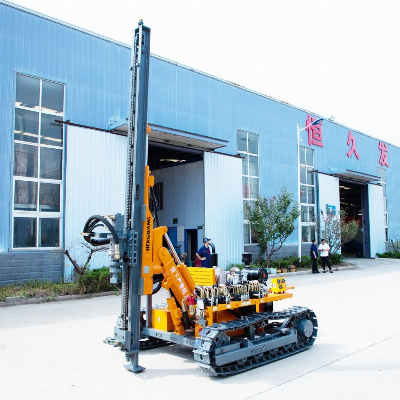

DTH Blast Hole Rock Blasting Drilling Rig Machine Equipment

Product DescriptionDTH drilling machine is based on the original 410F machine, which has been upgraded and optimized by Hengwang to maximize the function of lifting the rig. The plunger motor is used in the moving parts, which greatly prolongs the running life of the drill. In particular, the improvement of the operating platform, from the original two-person operation to one-person operation, improve the work efficiency while reducing the cost, for customers to consider more thoughtful.* Drilling Diameter :90-110mm* Drilling depth: 20m* Engine Power: Xichai 36.8 KW * Competive Price* Site Instrcution and Installation* Professtional After-Sales TeamTechnical ParameterDiesel Engine SpecificationsRig ModelPowerRated PowerHW412AXichai4DW91-50GBG3U 36.8kWHW412A-1 YC4DK80 58kW Dust collection system as standard equipmentGeneral SpecificationsDrill Pipe Sizes60*2000 mmHole range90-110 mmRotation torque (Max.)1,650 N.mRotation Speed70-150 rpmFeed Force15 kNPull Up Force25 kNFeed TypeChain / cylinderTramming Speed (Max.)2.5 km/hGradient25°Total Weight3,350Kg/ 3,760 kgTransportation Dimensions4900X2000X2200 mm  Detail Photos Successful Project  The following pictures are from customer feedback(Viet Nam,Thailand,Chile,Mexico,South Africa,Philipines,Malaysia,Columbia,ect),we also have a large number of customer feedback videos, if you are interested, please contact us.Packaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;Company Profile  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
