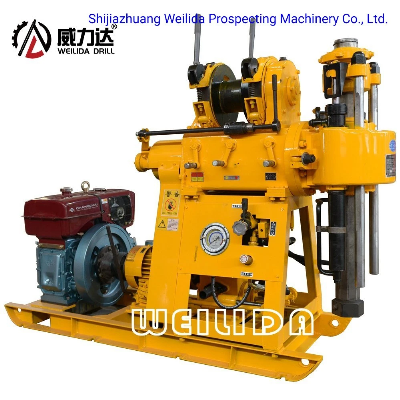

200m Water Well Drilling Machine Hydraulic Core Drill Rig

200m water well drilling machine Hydraulic core GK200drilling rig is suitable for census exploration, geophysical exploration, road and building exploration engineering.main feature:1. With hydraulic feeding mechanism, drilling efficiency is high.2. The upper ball clamping mechanism is used to replace the chuck, and the lever can be reversed without stopping.3. The handle is centralized, easy to operate, safe and reliable.4. Compact structure, drilling rig, water pump and diesel engine are all installed on the same chassis, occupying a small site area.5. The drilling rig is small in size, light in weight, strong in decomposability, easy to relocate, and suitable for work in plains or mountains.Detailed PhotosProduct ParametersSPECIFICATIONS FOR xy-1 drilling rig   Drilling rigDrilling hole diametermm70-300Drilling depthm10-100Drill pipe diametermm42Borehole inclination°90°~75°Rig dimension(L×B×H)mm1640×1030×1440Drill weight(except engine)kg500   gyroscopespindle speed(three block)r/min142,285,570spindle travelmm450max moving speedm/min3vertical max feed forceKN15vertical max liftKN25windlasshoisting capacity(single speed rope)KN10drum speedr/min55,110,220drum circumferential velocitym/s0.42,0.84,1.68drum diametermm145wire rope diametermm9.3rope weightm27the diameter of the brakemm230brake band widthmm50water pumppump type   horizontal single cylinder double actingmax displacementL/min95(77)max allowable pressureMpa1.2working pressureMpa1.2cylinder diametermm80oil pumppump type   gear pumppowerKW16.2rated pressureMpa12.5motor typeYBC-12/125   displacementL/r12rated speedr/min2000EngineDiesel engineHP18Rated speedr/min2200CertificationsPackaging & ShippingCompany ProfileShijiazhuang WeiLiDa Prospecting Machinery Co., Ltd. is a professional manufacturer of drill pipe, drilling rig and other drilling tools. Our factory is located in Jinzhou, Shijiazhuang . 200 km from the capital Beijing. We have good export conditions to Tianjin port and Huanghua port. Our factory covers an area of 20000 square meters. Its total assets is 50 million yuan.    Our company has advanced friction welding, drill pipe thickening equipment and a variety of molding technology and processing equipment. According to the customer's requirements, we can produce various specifications of the drill pipe and connecting parts of the United States standards. At the same time, we are also equipped with a set of physical and chemical testing machine on the hydraulic pressure, heat treatment, no damage, etc. to ensure the quality of products. At the beginning of the establishment, we passed the certification of CQC and ISO9001. Through years of manufacturing experience and customer's use of reflection, the application, safety and reliability of the domestic industry of our products have reached a leading level. We adhere to the "quality first, reputation first" business philosophy. We do our best to meet the customers' need .We are very pleased to establish a long-term business relationship with you on the basis of mutual benefit. We believe that we will be your best partner in ChinaAfter Sales ServiceProvide online installation guidance servicesFAQ1. What about the warranty time?    A:15 days2. What about the delivery time?    A:10-15days after receiving the deposit.3.What kind terms of payment can be accepted?    A: T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment4.What logistics ways we can work for shipment?    A: We can ship machine by sea and road. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
