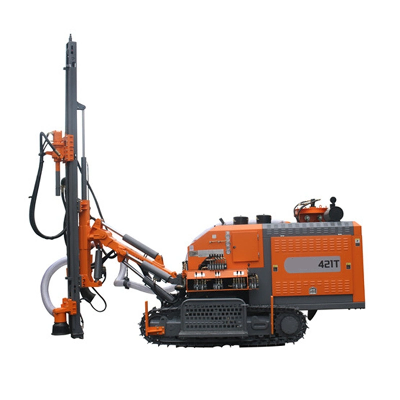

DTH Crawler Hydraulic Rotary Drilling Rig

Product DescriptionProduct Features:The rig is powered by Yuchai YC6J220, with 12/15 screw air compressor. Meet the aperture of 90-115 mm, standard dry dust collector;Using its single power to drive the screw air compressor and the hydraulic system of drilling rig at the same time, compared with the split drilling rig, the comprehensive fuel consumption is saved by 35% and the maintenance cost is reduced by 50%;Core hydraulic components are imported from Europe, reliable hydraulic system greatly reduces the workload of system maintenance, convenient and practical;Powerful two-speed hydraulic walking mechanism, strong off-road ability, high torque rotary motor can easily deal with stuck drill;Two-stage dry dust collection device, environmental protection and also help to improve production efficiency; The integration technology has solved the problem of movement and remote management of air compressor in engineering and mine.Detailed Photos Product ParametersMain technical specificationsHole Depth20 m  Drill Pipe SizesΦ60 mm×3,000 mm Hole Dia Φ90-115 mm DTH Hammer3.5"Rotation Torque ( Max.)1,950 N.mRotation Speed 60-120 rpm Working Pressure15 bar F.A.D12m³/ min Tramming Speed ( Max.) 2/3km/ h Dual Speed Gradient30°Track Frame Oscilation±10 °Total Weight6,800 kgTransportation Dmensions6,000x2,300x2,750 mmDry Dust CollectorStandard Dual Speed Walking MotorStandard Packaging & ShippingDelivery: about 30 days upon receipt the deposit.Packaging: Shipping by stretch film inside and plywood case outside into containerQuality Guarantee: 12 months from delivery date except spare parts.Installation and Manual:1)No need any installation and just connect your power.2)Manual(in Chinese/English/Spanish/French) will be provided after order confirmationCompany ProfileFAQ/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
